(35.355.AC[03]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX210D LC (35.355.AC[03]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

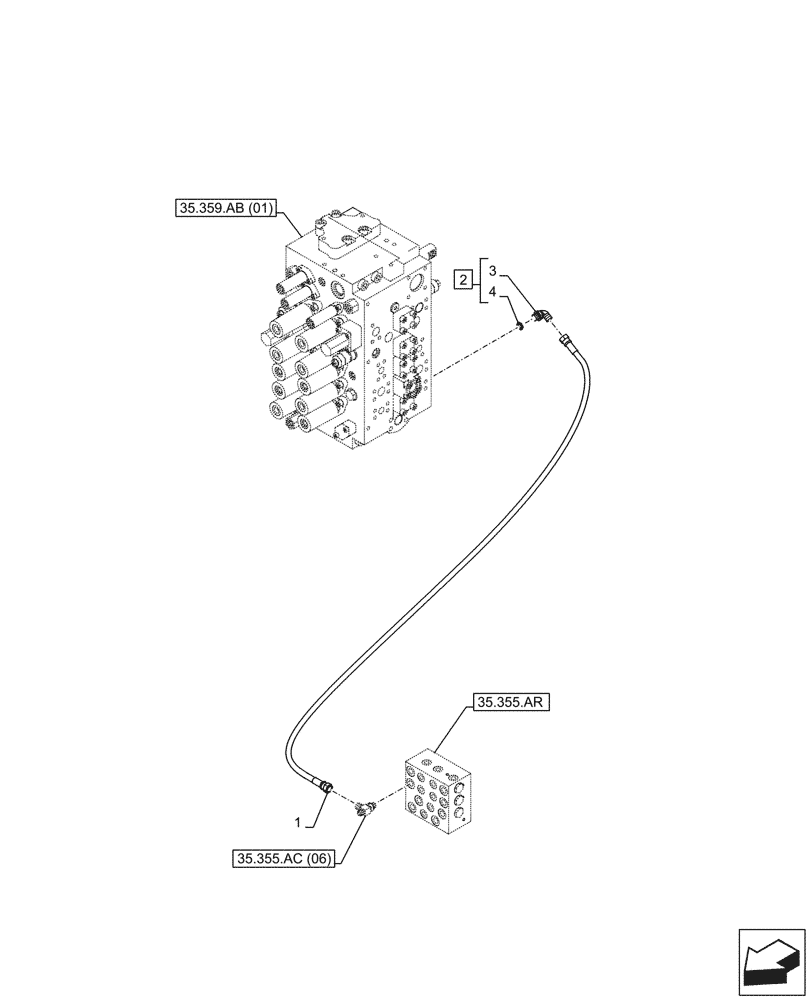

Схема запчастей Case CX210D LC - (35.355.AC[03]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.355.ar
1
4
3
2
35.355.ac (06)
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ26660

HOSE ASSY.

9mm ID x 1250mm

1шт.

2

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

1шт.

4

154475A1

O-RING

1шт.

Выбрано товаров: 4
