(35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER

Запчасти Case CX210D LC (35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER (35) - HYDRAULIC SYSTEMS

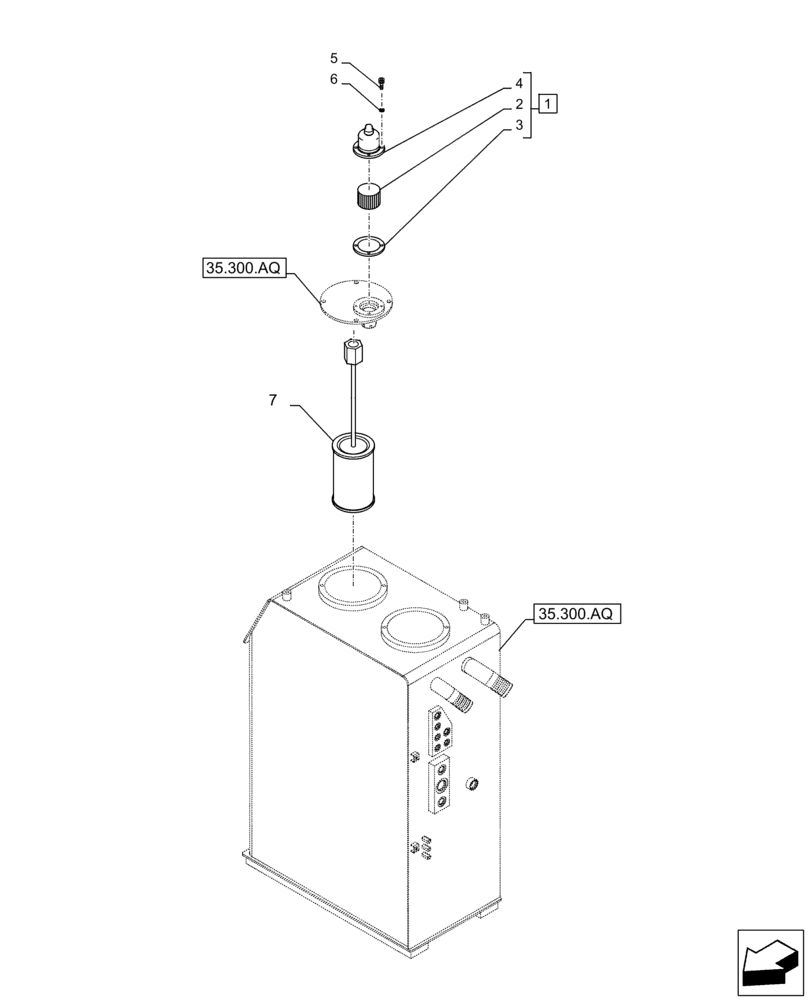

Схема запчастей Case CX210D LC - (35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER (35) - HYDRAULIC SYSTEMS
3
1
35.300.aq
6
7
2
5
35.300.aq
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ22142

BREATHER

ASSY, Incl 2 - 4

1шт.

2

KHJ22152

HYDRAULIC OIL FILTER

Reservoir Breather

1шт.

3

KHJ1492

CAP

1шт.

4

159703A1

GASKET

1шт.

5

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

6

892-11006

LOCK WASHER,M6

4шт.

7

KRJ34900

HYDRAULIC OIL FILTER

, Serial Range: -C0450

1шт.

7

KRJ34901

FILTER STRAINER

Inlet, Start Serial: D0450

1шт.
