Запчасти Case CX160D LC (35.106.AN[02]) - VAR - 461863 - HYDRAULIC PUMP, PTO, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

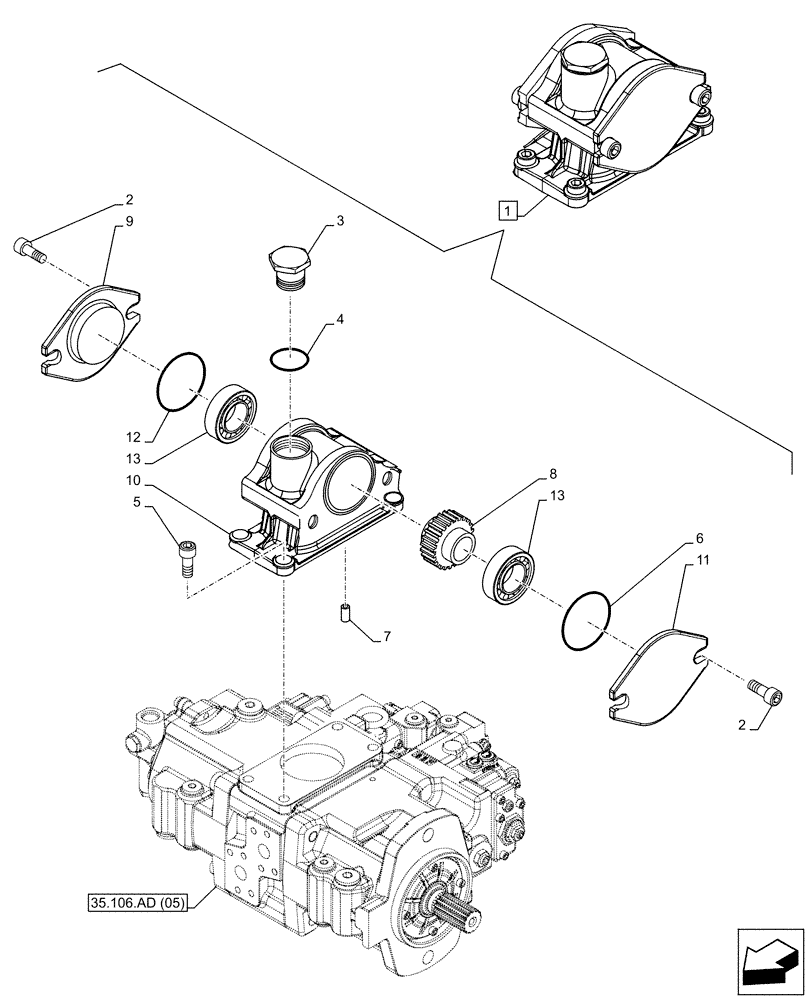

Схема запчастей Case CX160D LC - (35.106.AN[02]) - VAR - 461863 - HYDRAULIC PUMP, PTO, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
3
12
8
6
2
13
11
4
35.106.ad (05)
7
1
5
13
2
10
9

Артикул

Название

Примечание

Количество

1

LC003030

GEAR

ASSY, Incl 2 - 13

2шт.

See also figure 35.106.AD(05), 35.106.AD(06), 35.106.AD(07), 35.106.AD(08), 35.357.AC(02)

1шт.

2

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

4шт.

3

155471A1

PLUG

1шт.

4

154503A1

O-RING

1шт.

5

LA00691

BOLT,Hex Skt Hd

4шт.

6

154697A1

O-RING

1шт.

7

LA010900

DOWEL

1шт.

8

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

12

154689A1

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

Выбрано товаров: 14
