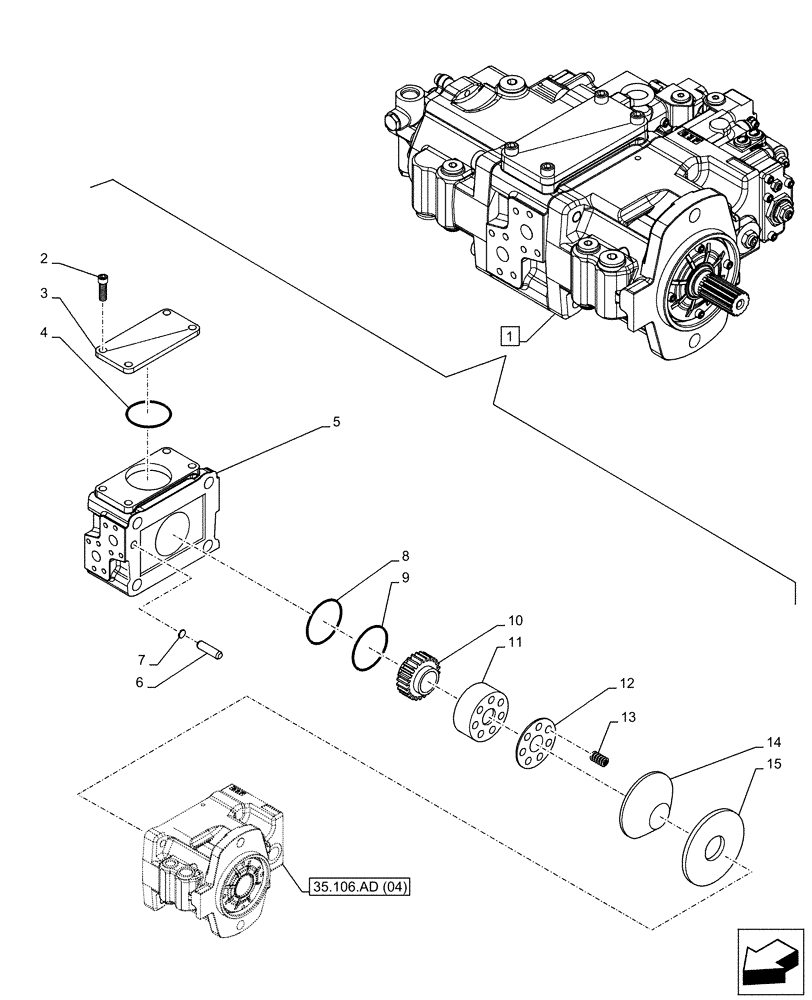

Запчасти Case CX160D LC (35.106.AD[03]) - VARIABLE DELIVERY HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KLJ14210

HYDRAULIC PUMP

ASSY, Incl 2 - 15

1шт.

See also figure 35.106.AD(01), 35.106.AD(02), 35.106.AD(04), 35.357.AC(01)

1шт.

2

LA016800

BOLT

4шт.

3

LW005710

COVER

1шт.

4

LE013510

O-RING

1шт.

5

LJ022950

VALVE

1шт.

6

LA017130

PIN

4шт.

7

LE022170

SEAL

12шт.

8

LE00606

O-RING

2шт.

9

LE013410

O-RING

6шт.

10

LC003020

GEAR

1шт.

11

LJ015070

BARREL

RH

1шт.

12

LR015670

PLATE

2шт.

13

156960A1

SPRING

12шт.

14

LR015660

PLATE

2шт.

15

LS004870

SUPPORT

2шт.
