(35.106.AB[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, FLANGE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.106.AB[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, FLANGE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

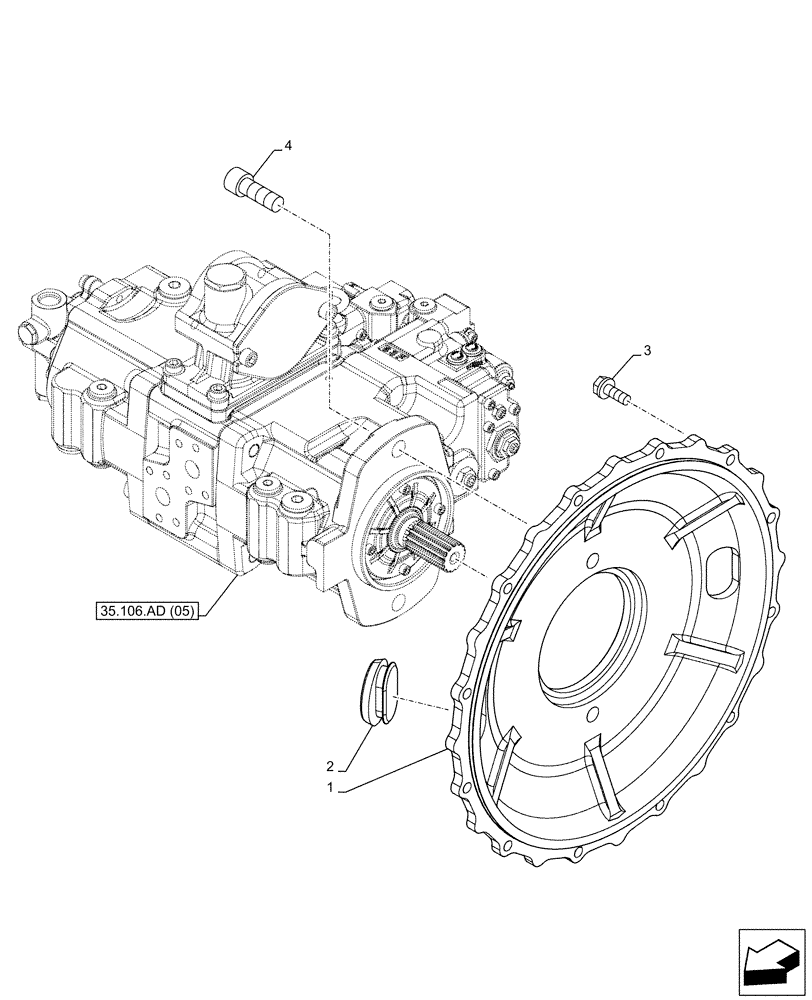

Схема запчастей Case CX160D LC - (35.106.AB[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, FLANGE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
4
35.106.ad (05)
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ11750

FLANGE

1шт.

2

KHJ2656

GROMMET

2шт.

3

166347A1

BOLT,Sems, M10 x 30mm

12шт.

4

108R016Y045R

BOLT

M16 x 45mm

2шт.

Выбрано товаров: 4
