(90.160.BY[01]) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH

Запчасти Case CX160D LC (90.160.BY[01]) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

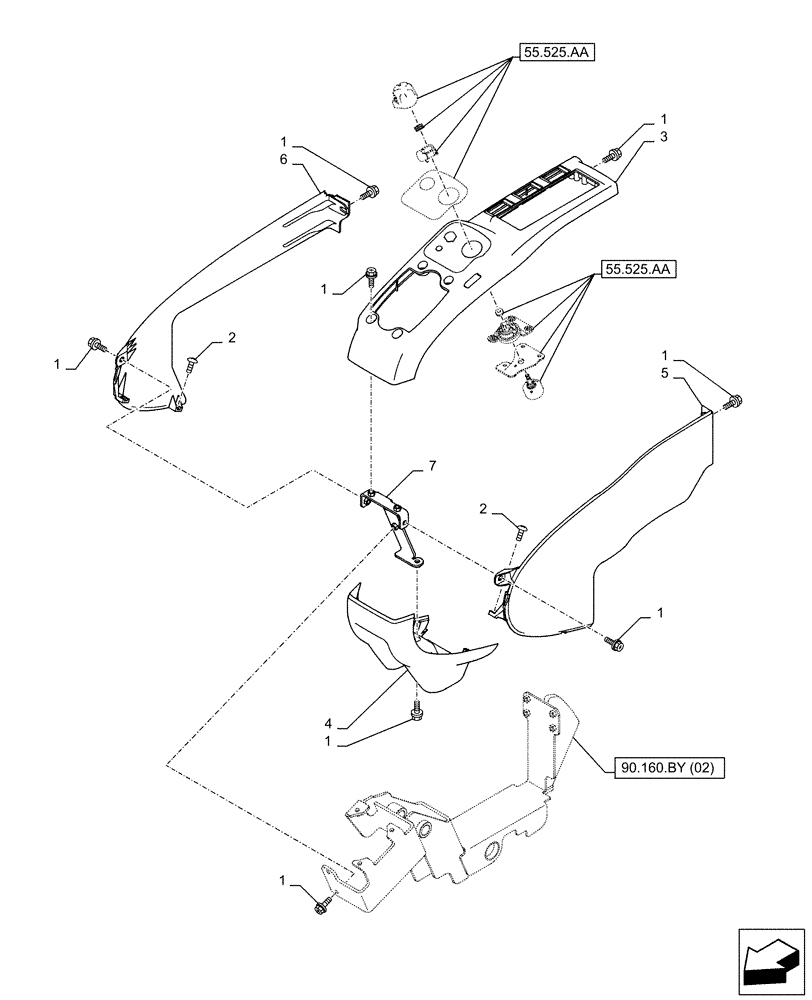

Схема запчастей Case CX160D LC - (90.160.BY[01]) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
90.160.by (02)
1
6
55.525.aa
1
55.525.aa
1
2
4
1
1
1
1
5
3
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN2132

BOLT,Hex Flg Hd, M6 x 16

9шт.

2

KHR2737

SELF-TAP SCREW

4шт.

3

KHN42500

COVER

1шт.

4

KHN26410

COVER

1шт.

5

KHN26430

COVER

1шт.

6

KHN26420

COVER

1шт.

7

KHN24100

BRACKET, SUPPORTING

1шт.

Выбрано товаров: 7
