Запчасти Case CX160D LC (90.151.AD[02]) - VAR - 488035 - SEAT, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

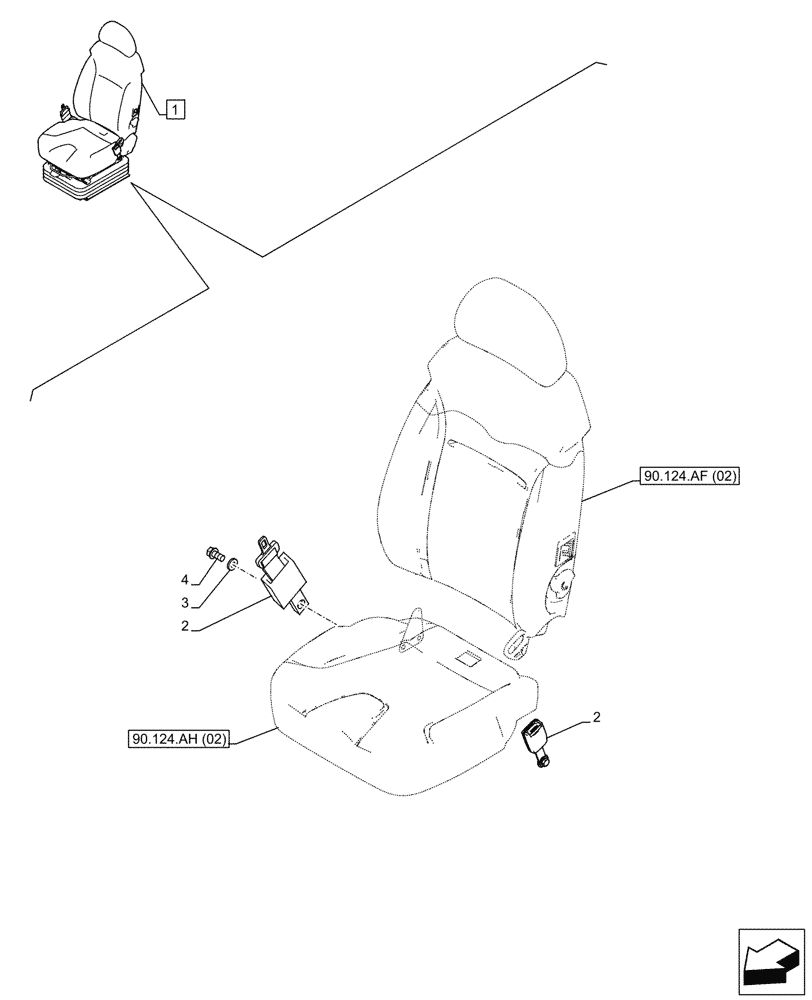

Схема запчастей Case CX160D LC - (90.151.AD[02]) - VAR - 488035 - SEAT, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ah (02)
2
4
3
2
1
90.124.af (02)

Артикул

Название

Примечание

Количество

1

KHN42800

DRIVER SEAT

ASSY, Incl 2 - 4, Years: -31-JAN-16

1шт.

1

KHN42801

DRIVER SEAT

ASSY, Incl 2 - 4, Start Year: 01-FEB-16

1шт.

2

KHN40120

SEAT BELT

1шт.

3

KHN40100

WASHER

2шт.

4

KHN40110

BOLT

2шт.

Выбрано товаров: 5
