(90.150.BJ[06]) - VAR - 781986 - FRONT, LOWER, STONEGUARD, OPENABLE

Запчасти Case CX160D LC (90.150.BJ[06]) - VAR - 781986 - FRONT, LOWER, STONEGUARD, OPENABLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

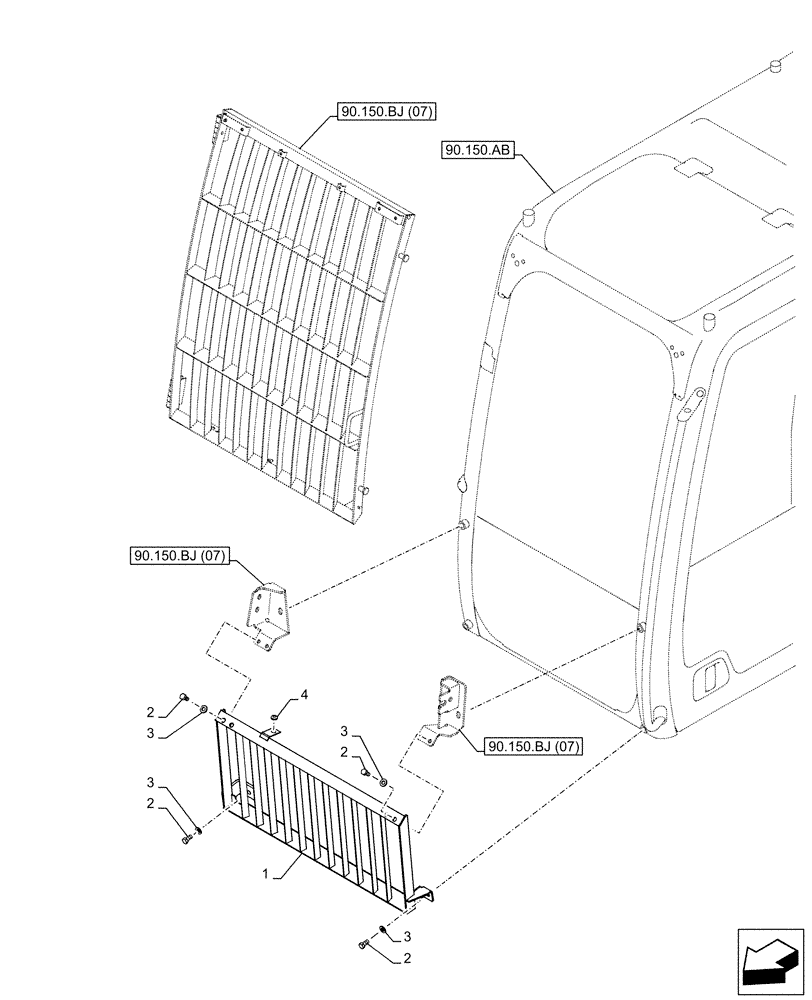

Схема запчастей Case CX160D LC - (90.150.BJ[06]) - VAR - 781986 - FRONT, LOWER, STONEGUARD, OPENABLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ab
3
2
2
4
3
3
3
1
2
2
90.150.bj (07)
90.150.bj (07)
90.150.bj (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN27720

GUARD

1шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

6шт.

3

150811A1

WASHER

6шт.

4

KHN16920

GROMMET

1шт.

Выбрано товаров: 4
