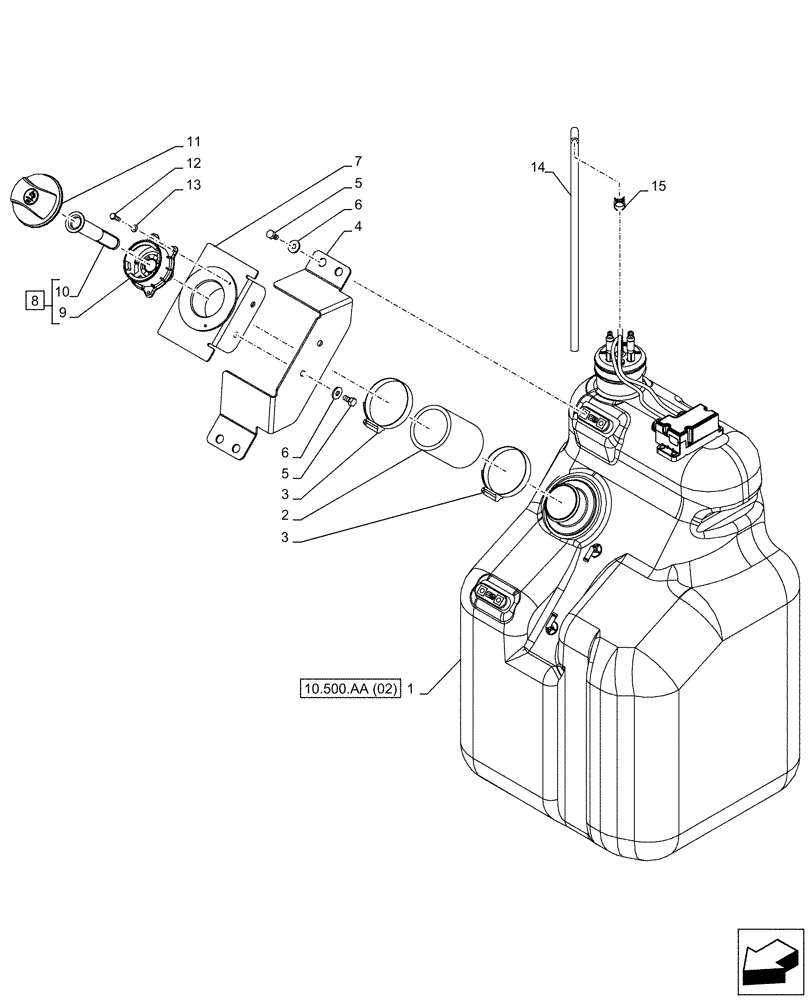

Запчасти Case CX160D LC (10.500.AA[01]) - DEF/ADBLUE™ TANK (10) - ENGINE

1

KRH19350

TANK

ASSY

1шт.

See also Figure 10.500.AA (02), 10.500.AA (03), 55.988.AN

1шт.

2

KLH11890

HOSE

1шт.

3

164968A1

COLLAR

2шт.

4

KLH12141

BRACKET

1шт.

5

102R008A016N

BOLT

M8 x 16mm

6шт.

6

KHH16160

WASHER

M8

6шт.

7

KBH13581

BRACKET

1шт.

8

KHH15591

FILTER

ASSY, Urea Tank, Incl 9, 10

1шт.

9

KHH17420

BASE PLATE

1шт.

10

KHH16450

FILTER STRAINER

1шт.

11

KHH16980

FILLER CAP

1шт.

12

KHH15640

BOLT

M5 x 16mm

3шт.

13

KHH15650

WASHER

M5

3шт.

14

157779A1

HOSE

500mm

1шт.

15

165951A1

CLAMP

1шт.
