(90.150.BJ[04]) - VAR - 461142 - FRONT, LOWER, GRILL, GUARD

Запчасти Case CX160D LC (90.150.BJ[04]) - VAR - 461142 - FRONT, LOWER, GRILL, GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

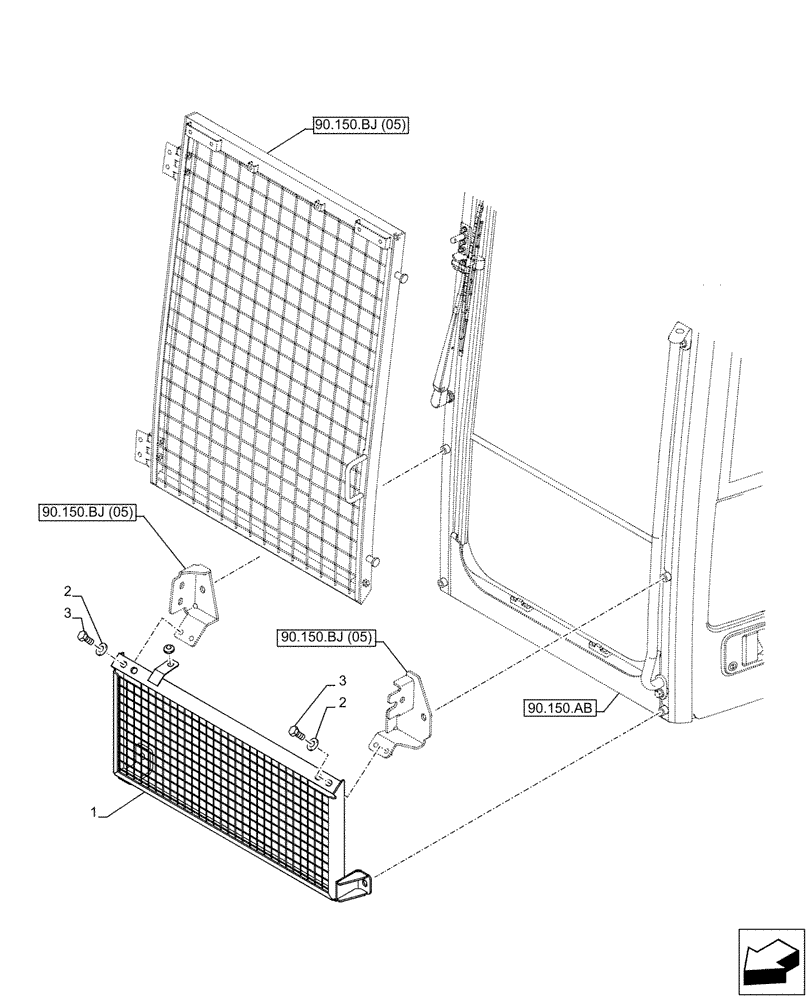

Схема запчастей Case CX160D LC - (90.150.BJ[04]) - VAR - 461142 - FRONT, LOWER, GRILL, GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
90.150.bj (05)
2
90.150.bj (05)
90.150.ab
1
90.150.bj (05)
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN27890

GUARD

1шт.

2

150811A1

WASHER

6шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

6шт.

Выбрано товаров: 3
