Запчасти Case CX160D LC (90.124.AO) - VAR - 488035 - SEAT, AIR SUSPENSION, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

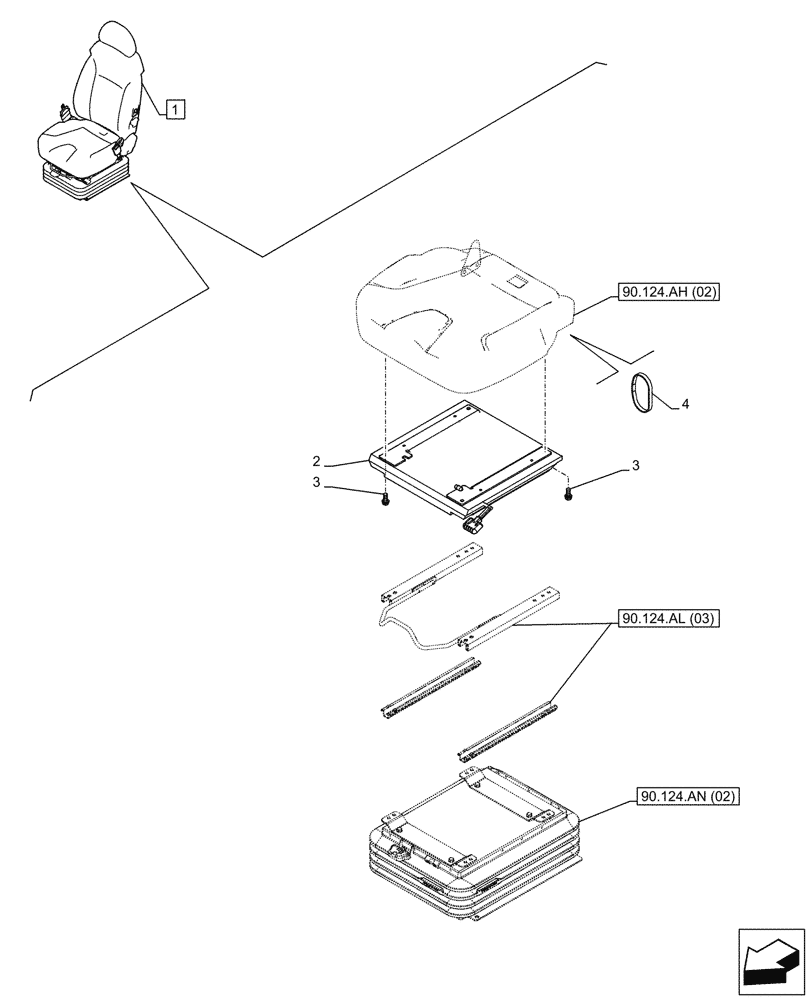

Схема запчастей Case CX160D LC - (90.124.AO) - VAR - 488035 - SEAT, AIR SUSPENSION, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.al (03)
4
3
2
1
3
90.124.ah (02)
90.124.an (02)

Артикул

Название

Примечание

Количество

1

KHN42800

DRIVER SEAT

ASSY, Incl 2 - 4, Years: -31-JAN-16

1шт.

1

KHN42801

DRIVER SEAT

ASSY, Incl 2 - 4, Start Year: 01-FEB-16

1шт.

2

KHN43080

KIT

1шт.

3

KHN40220

BOLT

12шт.

4

KHN45020

BAND

1шт.

Выбрано товаров: 5
