Запчасти Case CX160D LC (90.124.AF[02]) - VAR - 488035 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS

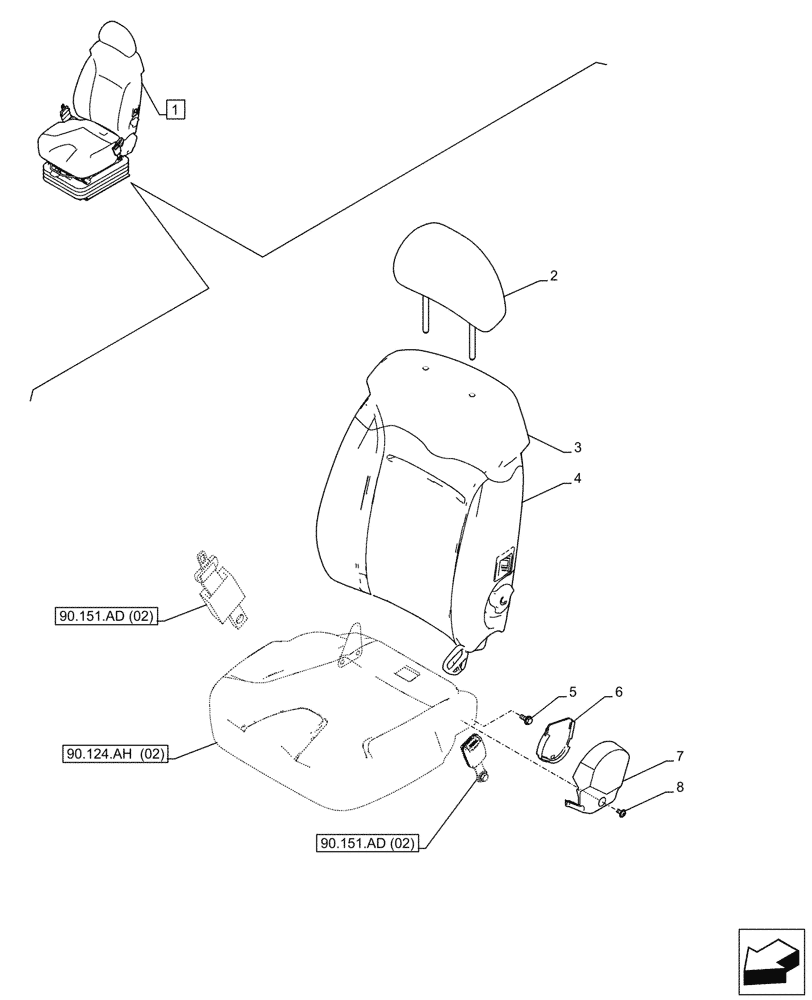

Схема запчастей Case CX160D LC - (90.124.AF[02]) - VAR - 488035 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ad (02)
7
2
4
3
1
8
6
5
90.124.ah (02)
90.151.ad (02)

Артикул

Название

Примечание

Количество

1

KHN42800

DRIVER SEAT

ASSY, Incl 2 - 8, Years: -31-JAN-16

1шт.

1

KHN42801

DRIVER SEAT

ASSY, Incl 2 - 8, Start Year: 01-FEB-16

1шт.

2

KHN40280

SEAT HEADREST

, Years: -31-JAN-16

1шт.

2

KHN40281

SEAT HEADREST

, Start Year: 01-FEB-16

1шт.

3

KHN17680

COVER

1шт.

4

KHN40620

SEAT CUSHION

, Years: -31-JAN-16

1шт.

4

KHN40621

SEAT CUSHION

, Start Year: 01-FEB-16

1шт.

5

KHN40240

BOLT

4шт.

6

KHN40250

HINGE

1шт.

7

KHN40270

HINGE

1шт.

8

KHN40260

SCREW

2шт.

Выбрано товаров: 11
