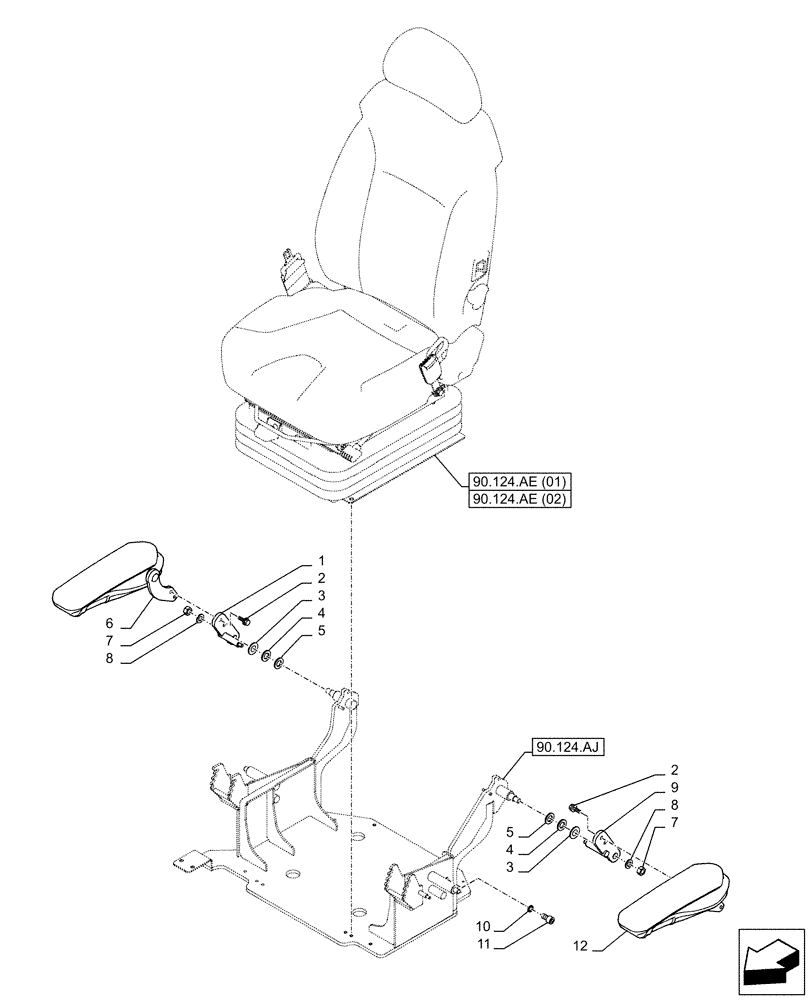

Запчасти Case CX160D LC (90.124.AD) - VAR - 488035, 781277 - SEAT, AIR SUSPENSION, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN39750

BRACKET

1шт.

2

KHN17270

BOLT,Spcl

4шт.

3

KHN40030

SHIM

4шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

AMJ0552

WASHER

2шт.

6

KHN39620

ARMREST

1шт.

7

829-1412

NUT,M12, Cl 10.9

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

9

KHN39740

BRACKET

1шт.

10

892-11012

LOCK WASHER,M12

1шт.

11

862-12020

HEX SOC SCREW,M12 x 20mm, Cl 12.9

1шт.

12

KHN39250

ARMREST

1шт.
