(90.118.BM) - REAR VIEW MIRROR, OUTSIDE

Запчасти Case CX160D LC (90.118.BM) - REAR VIEW MIRROR, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

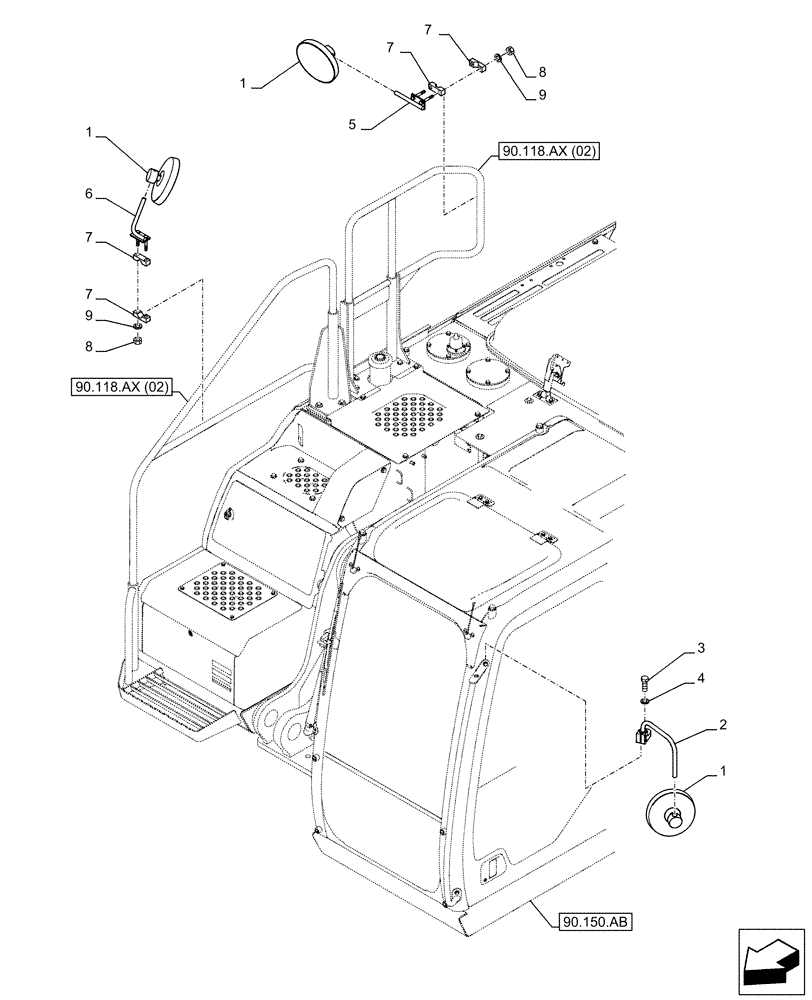

Схема запчастей Case CX160D LC - (90.118.BM) - REAR VIEW MIRROR, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
7
1
4
8
6
2
90.150.ab
5
9
7
90.118.ax (02)
9
7
1
90.118.ax (02)
8
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHP15130

REAR VIEW MIRROR

3шт.

2

KHP11350

SUPPORT

1шт.

3

KHP15020

BOLT,Hex

1шт.

4

157528A1

WASHER

1шт.

5

KHP23080

STAY

1шт.

6

KHP23090

STAY

1шт.

7

KHP18570

CLAMP

4шт.

8

829-1412

NUT,M12, Cl 10.9

4шт.

9

183-112VR

SPRING WASHER

4шт.
