(90.105.CF) - HOOD, FUEL TRANSFER PUMP

Запчасти Case CX160D LC (90.105.CF) - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS

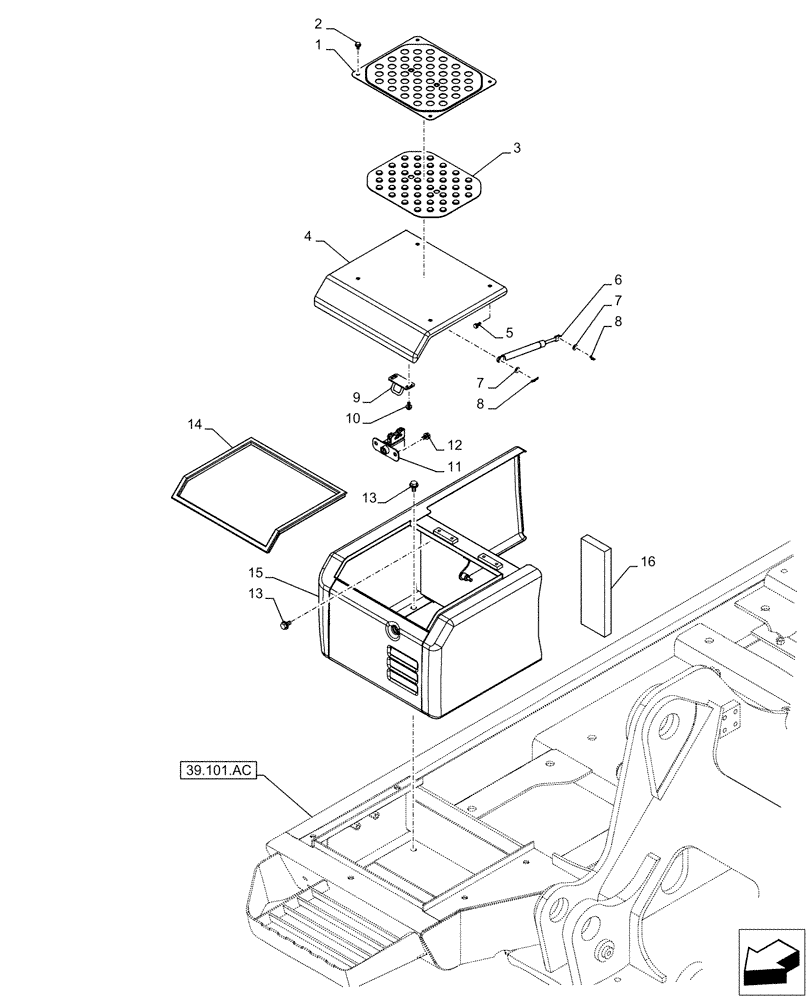

Схема запчастей Case CX160D LC - (90.105.CF) - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
1
10
2
13
4
9
14
5
1
1
10
7
1
13
12
16
8
8
13
7
4
3
7
14
7
5
9
11
11
12
15
5
5
6
8
6
8
3
13
15
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN13510B1

COVER

1шт.

2

KHN13540

BOLT,Spcl

4шт.

3

KHN10940

RUBBER PAD

1шт.

4

KNN15940G1

COVER

1шт.

5

KAN2771

BOLT,Spcl

4шт.

6

KHN38920

DAMPER

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

153077A1

COTTER PIN

2шт.

9

KHN12740

SUPPORT

1шт.

10

166350A1

BOLT

2шт.

11

KHN35780

LOCK

1шт.

12

166351A1

BOLT,Sems, M10 x 20mm

2шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

14

KHN41830

TRIM

1шт.

15

KNN15930G1

COVER

1шт.

16

KLN14110

INSULATION

1шт.
