(90.105.BV[06]) - HOUSING & COVERS, INSULATION

Запчасти Case CX160D LC (90.105.BV[06]) - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

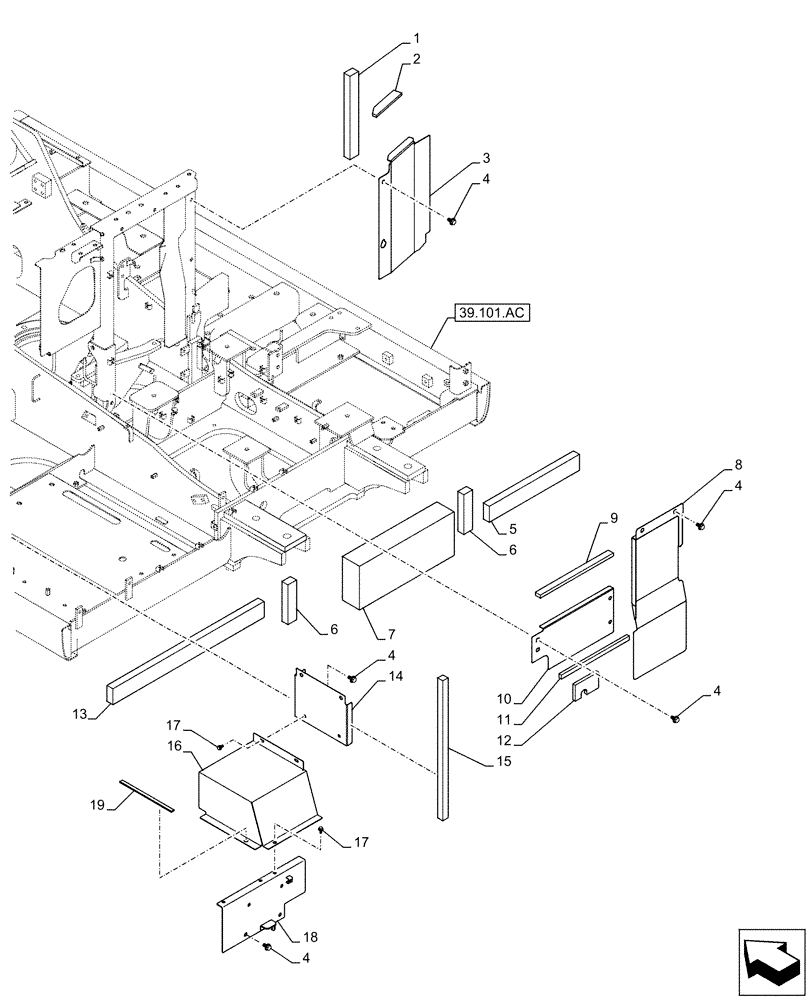

Схема запчастей Case CX160D LC - (90.105.BV[06]) - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
4
8
4
1
4
2
7
9
17
5
15
11
17
10
6
6
12
13
4
4
3
14
16
19
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNN16070

SEAL

1шт.

2

KNN14670

SEAL

1шт.

3

KNN16250

COVER

1шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

13шт.

5

KLN10590

NOISE PROTECTION

1шт.

6

KLN10580

SEAL

2шт.

7

KLN12030

SEAL

1шт.

8

KNN16040

COVER

1шт.

9

KNN13380

SEAL

1шт.

10

KNN15690

COVER

1шт.

11

KNN13230

INSULATION

1шт.

12

KNN15740

SEAL

1шт.

13

KLN11210

NOISE PROTECTION

1шт.

14

KLN13250

COVER

1шт.

15

KLN12750

SEAL

1шт.

16

KLN13401

COVER

1шт.

17

166350A1

BOLT

3шт.

18

KLN12841

BRACKET

1шт.

19

KRN14530

SEAL

1шт.
