(90.105.BV[05]) - HOUSING & COVERS

Запчасти Case CX160D LC (90.105.BV[05]) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

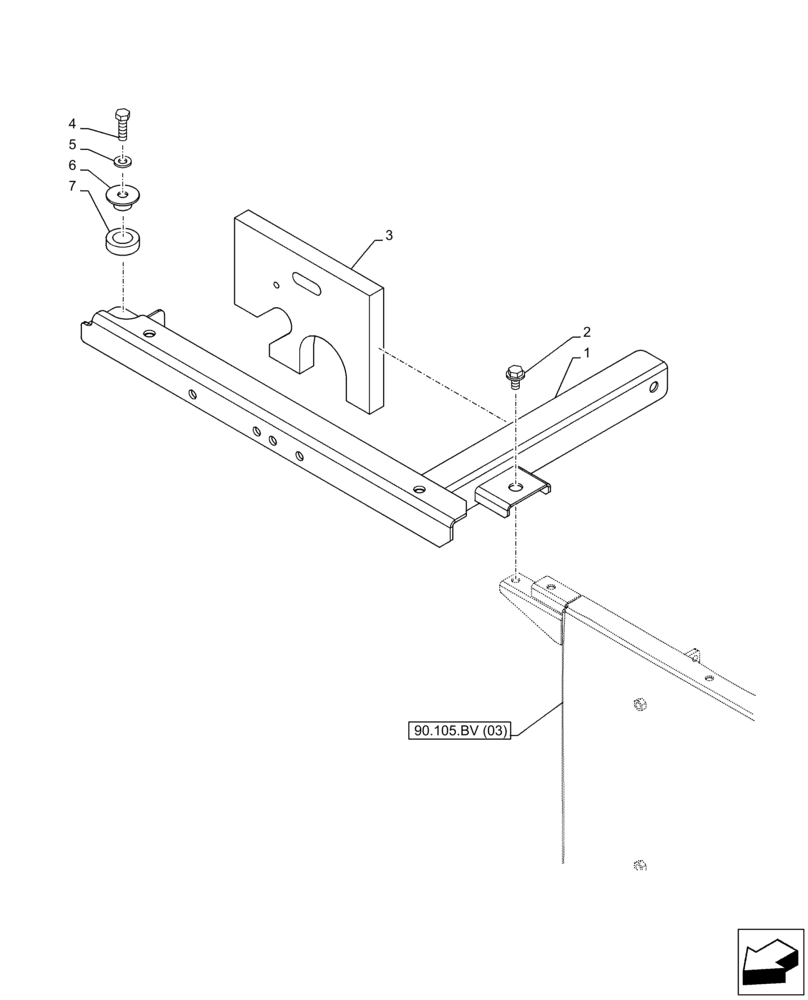

Схема запчастей Case CX160D LC - (90.105.BV[05]) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.bv (03)
3
4
2
5
7
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLN13320

FRAME

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

3

KLN14010

SEAL

1шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

5

150811A1

WASHER

1шт.

6

KHN18020

SPACER

1шт.

7

KHN18030

WASHER

1шт.
