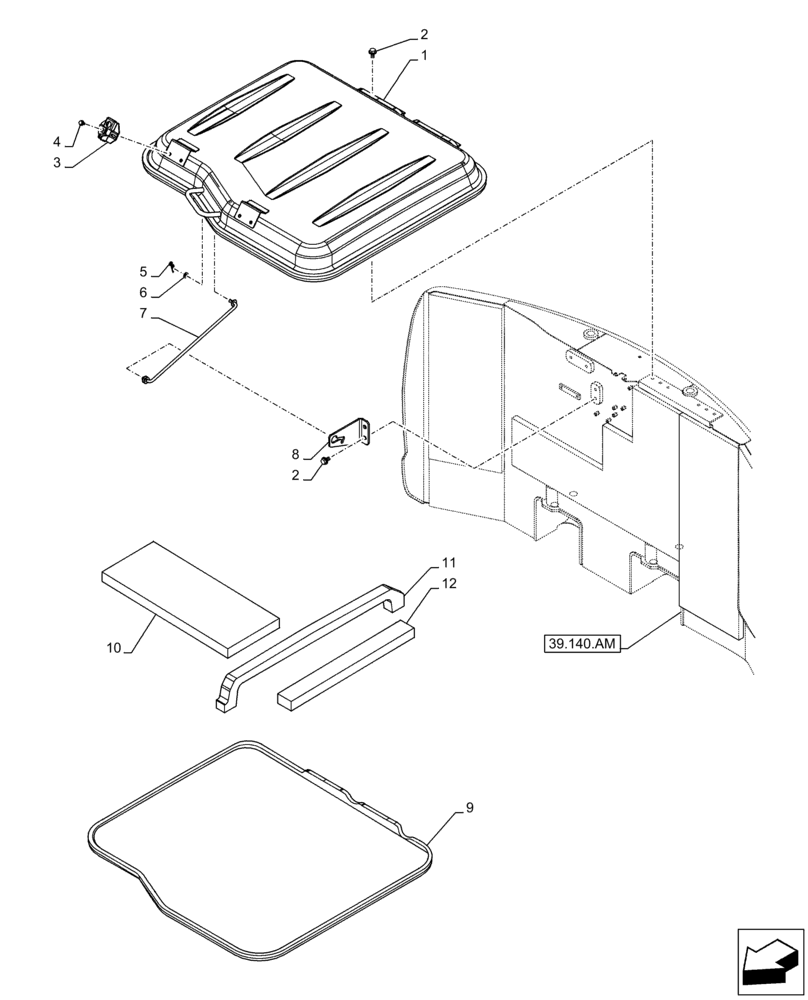

Запчасти Case CX160D LC (90.100.AU[01]) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KNN16140G1

HOOD

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

3

150785A1

STOP LOCK

2шт.

4

167182A1

BOLT,Sems, M8 x 25mm

4шт.

5

153181A1

COTTER PIN

1шт.

6

150409A1

WASHER

1шт.

7

KNN15671

STAY

1шт.

8

KNN15920

BRACKET

1шт.

9

KHN38930

TRIM

1шт.

10

KNN16031

INSULATION

2шт.

11

KNN14530

SEAL

1шт.

12

KNN15950

SEAL

1шт.
