(88.100.90[15]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, RH

Запчасти Case CX160D LC (88.100.90[15]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, RH (88) - ACCESSORIES

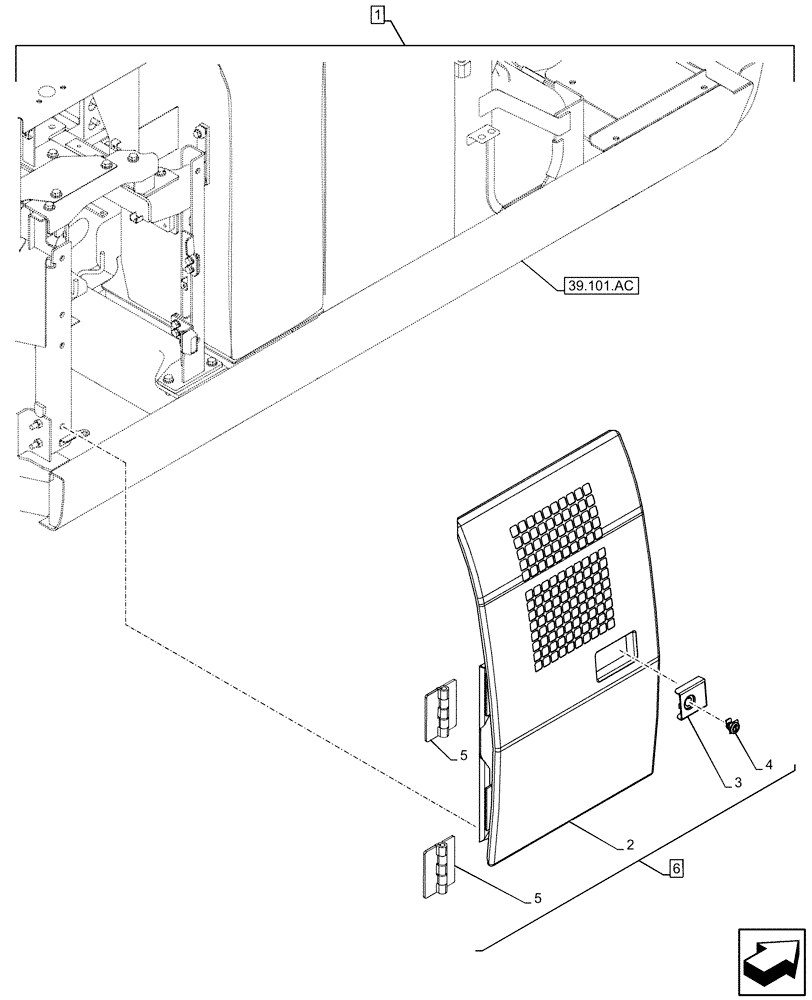

Схема запчастей Case CX160D LC - (88.100.90[15]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, RH (88) - ACCESSORIES
2
5
1
4
5
6
39.101.ac
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP406-00

CONSTRUCTION DIA

Parts, Repair, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Door RH, Incl in 6

1шт.

3

150938A1

LOCK

1шт.

4

KHN24530

LOCK CYLINDER

1шт.

5

KHN35880

HINGE

2шт.

6

KLN14090NA

DOOR

ASSY, RH, Incl 2 - 5

1шт.
