(88.100.90[14]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, LH

Запчасти Case CX160D LC (88.100.90[14]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, LH (88) - ACCESSORIES

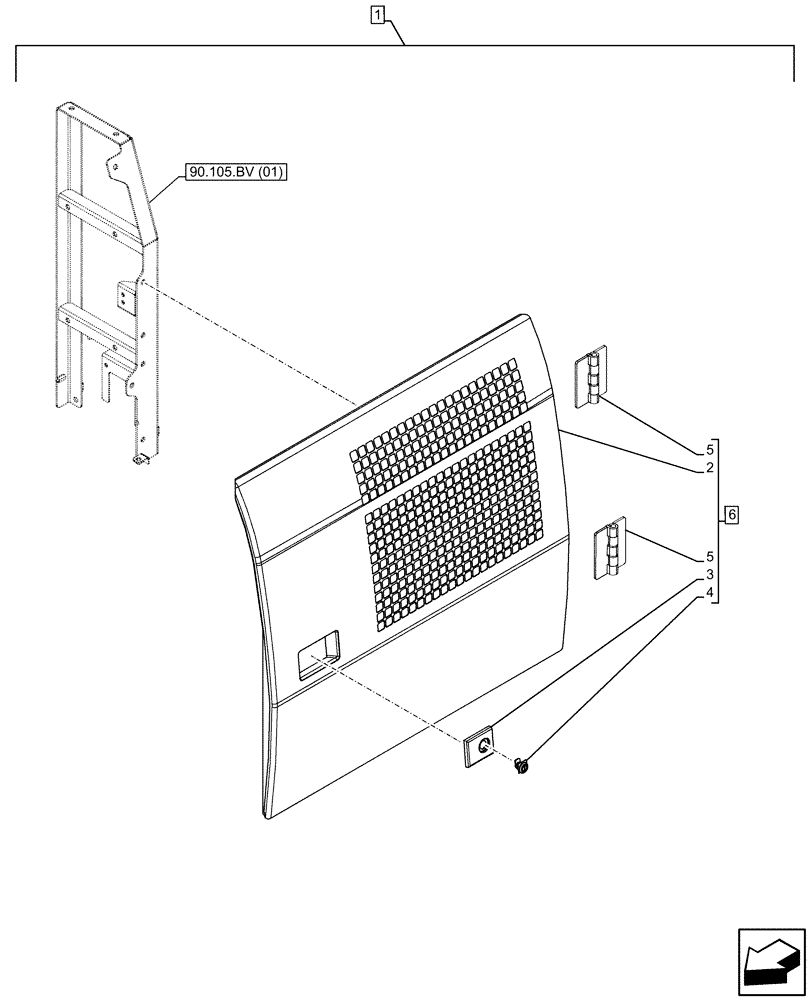

Схема запчастей Case CX160D LC - (88.100.90[14]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, LH (88) - ACCESSORIES
2
5
6
90.105.bv (01)
4
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP406-00

CONSTRUCTION DIA

Parts, Repair, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Door LH, Incl in 6

1шт.

3

150938A1

LOCK

1шт.

4

KHN24530

LOCK CYLINDER

1шт.

5

KHN35880

HINGE

2шт.

6

KLN14080NA

DOOR

ASSY, LH, Incl 2 - 5

1шт.
