(88.100.84[01]) - DIA KIT, BUCKET, LINK, W/ HOOK

Запчасти Case CX160D LC (88.100.84[01]) - DIA KIT, BUCKET, LINK, W/ HOOK (88) - ACCESSORIES

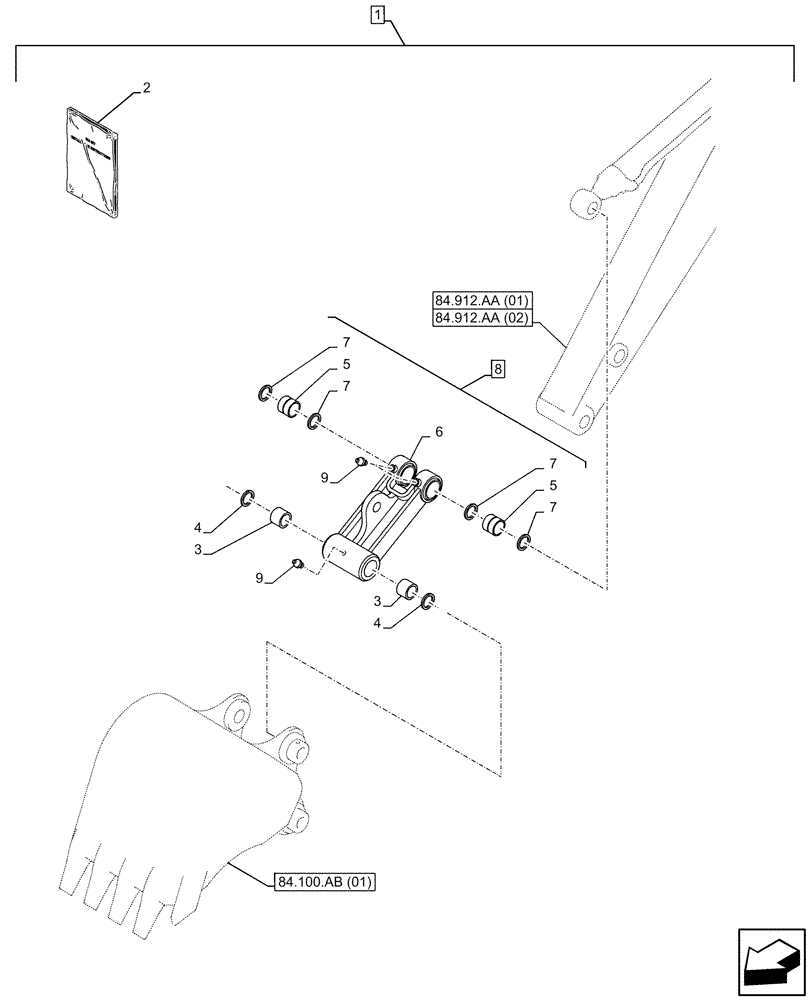

Схема запчастей Case CX160D LC - (88.100.84[01]) - DIA KIT, BUCKET, LINK, W/ HOOK (88) - ACCESSORIES
4
84.912.aa (02)
3
8
5
3
84.100.ab (01)
2
9
6
9
7
5
7
7
7
1
84.912.aa (01)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP414-00

CONSTRUCTION DIA

Bucket Linkage w/ Hook, Incl 2 - 9

1шт.

2

47880438

INSTRUCTION

1шт.

2

47880456

INSTRUCTION

1шт.

3

KLV11110

BUSHING

2шт.

4

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

5

KNV1140

SELF LUB RING

2шт.

6

NSS

NOT SOLD SEPARAT

Bucket Link w/ Hook, Incl in 8

1шт.

7

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

4шт.

8

KLV12230

POWER ARM

ASSY, Incl 3 - 7

1шт.

9

153630A1

LUBE NIPPLE

3шт.
