(88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER

Запчасти Case CX160D LC (88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER (88) - ACCESSORIES

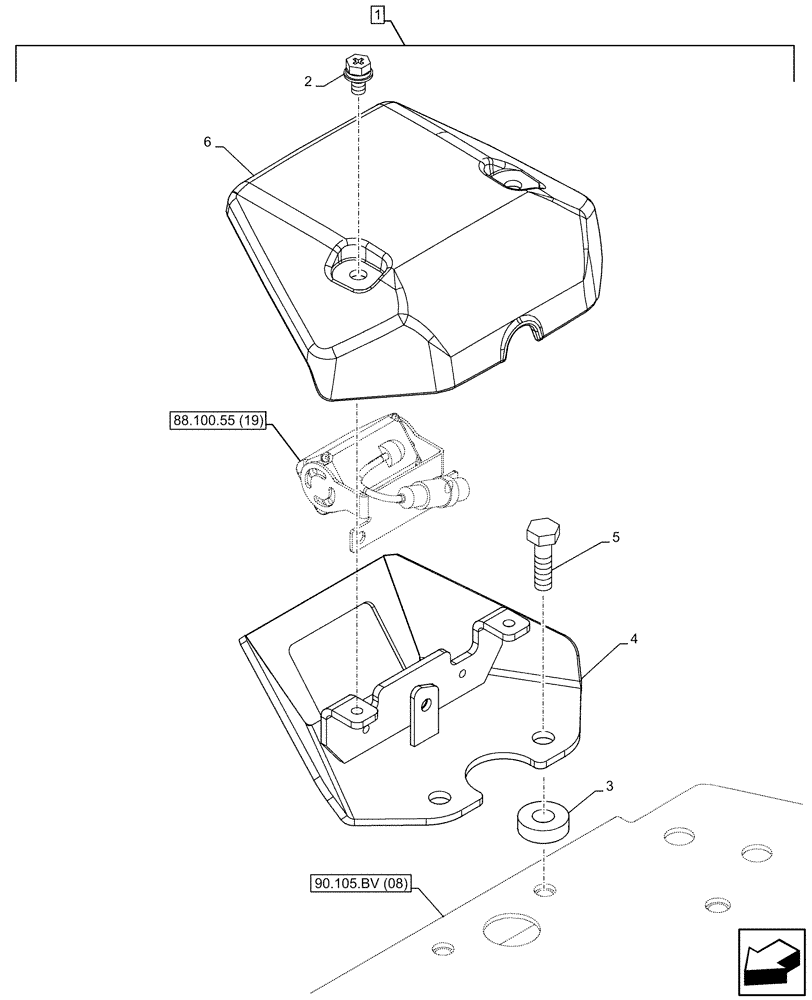

Схема запчастей Case CX160D LC - (88.100.55[21]) - DIA KIT, RIGHT, SIDE CAMERA, COVER (88) - ACCESSORIES
3
4
1
2
6
88.100.55 (19)
90.105.bv (08)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP441-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHN2308

SCREW

M8 x 16mm

2шт.

3

KHR40260B1

SPACER

2шт.

4

KHR40230B1

BRACKET

1шт.

5

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

2шт.

6

KHR39570

COVER

1шт.

Выбрано товаров: 7
