(88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS

Запчасти Case CX160D LC (88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS (88) - ACCESSORIES

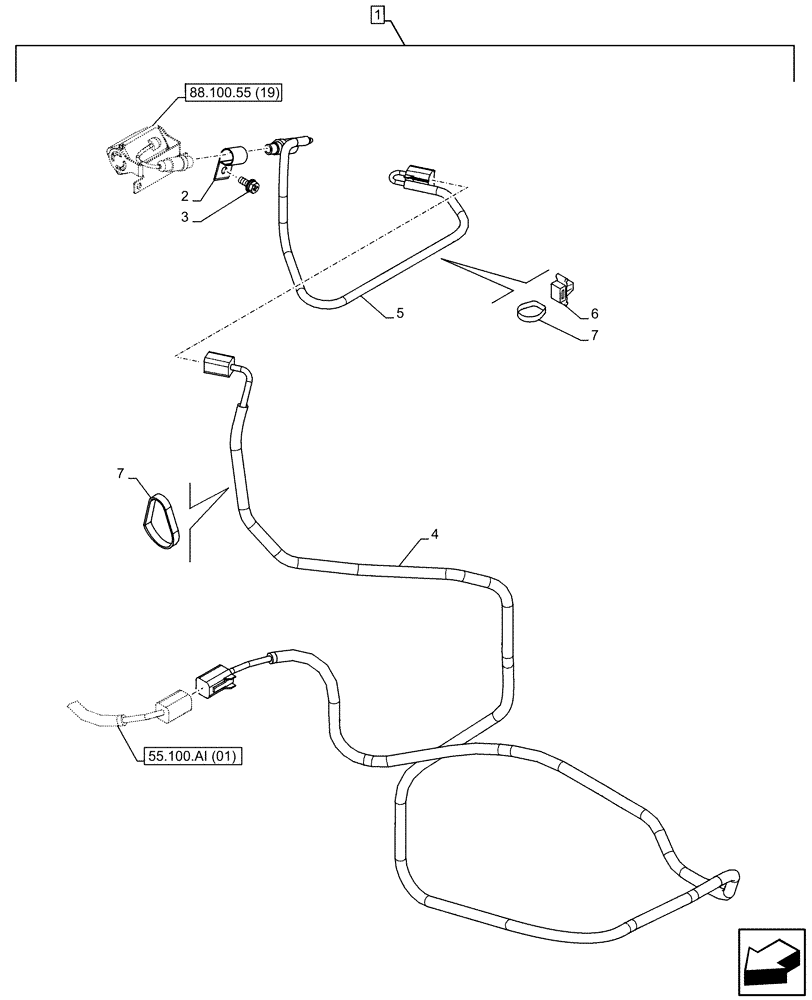

Схема запчастей Case CX160D LC - (88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS (88) - ACCESSORIES
7
6
88.100.55 (19)
2
7
1
4
3
55.100.ai (01)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP441-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

157806A1

COLLAR

1шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

1шт.

4

KHR43880

WIRE HARNESS

1шт.

5

KHR40560

WIRE HARNESS

600mm

1шт.

6

KHR10220

MOUNTING CLIP

2шт.

7

150496A1

MOUNTING CLIP

250mm

17шт.
