Запчасти Case CX160D LC (88.100.55[13]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT, COMPONENTS (88) - ACCESSORIES

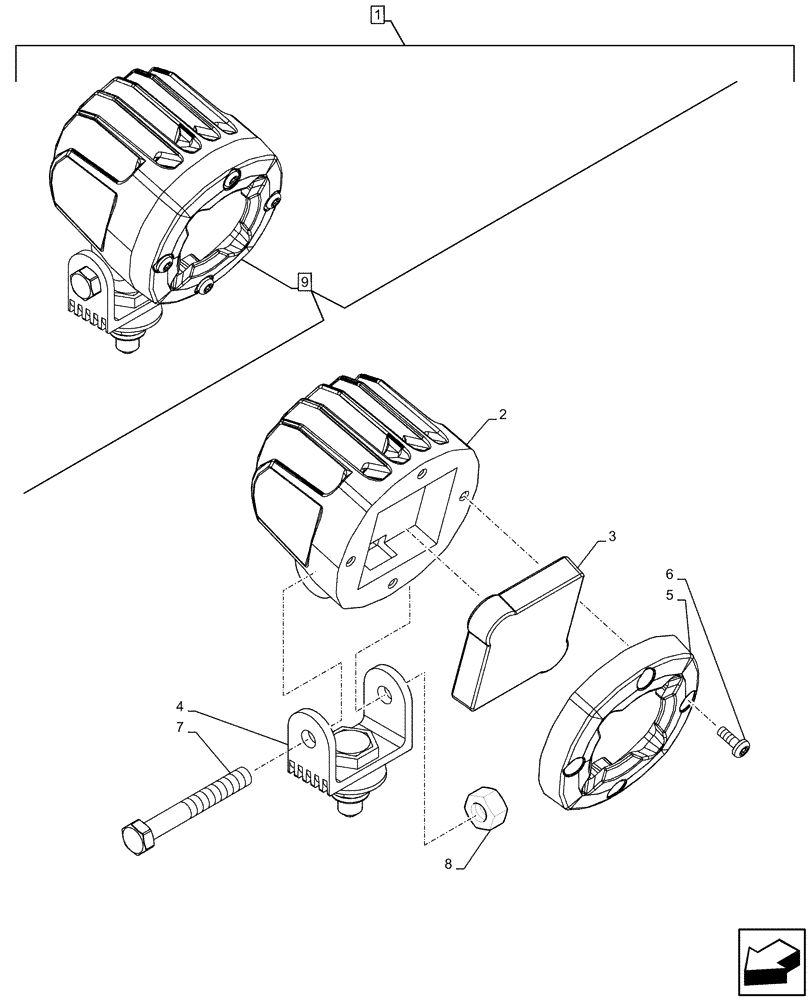

Схема запчастей Case CX160D LC - (88.100.55[13]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT, COMPONENTS (88) - ACCESSORIES
7
6
4
2
8
3
5
1
9

Артикул

Название

Примечание

Количество

1

KG0LP436-00

CONSTRUCTION DIA

Right, Left, Rear View Camera, Light, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Lamp, Incl in 9

1шт.

3

KHR37970

LENS

1шт.

4

KHR37960

BRACKET

1шт.

5

KHR37980

COVER

1шт.

6

NSS

NOT SOLD SEPARAT

Screw, Incl in 9

4шт.

7

NSS

NOT SOLD SEPARAT

Bolt, Incl in 9

1шт.

8

NSS

NOT SOLD SEPARAT

Nut, Incl in 9

1шт.

9

KHR37950

WORK LAMP

ASSY, Incl 2 - 8

1шт.

Выбрано товаров: 10
