Запчасти Case CX160D LC (88.100.55[10]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

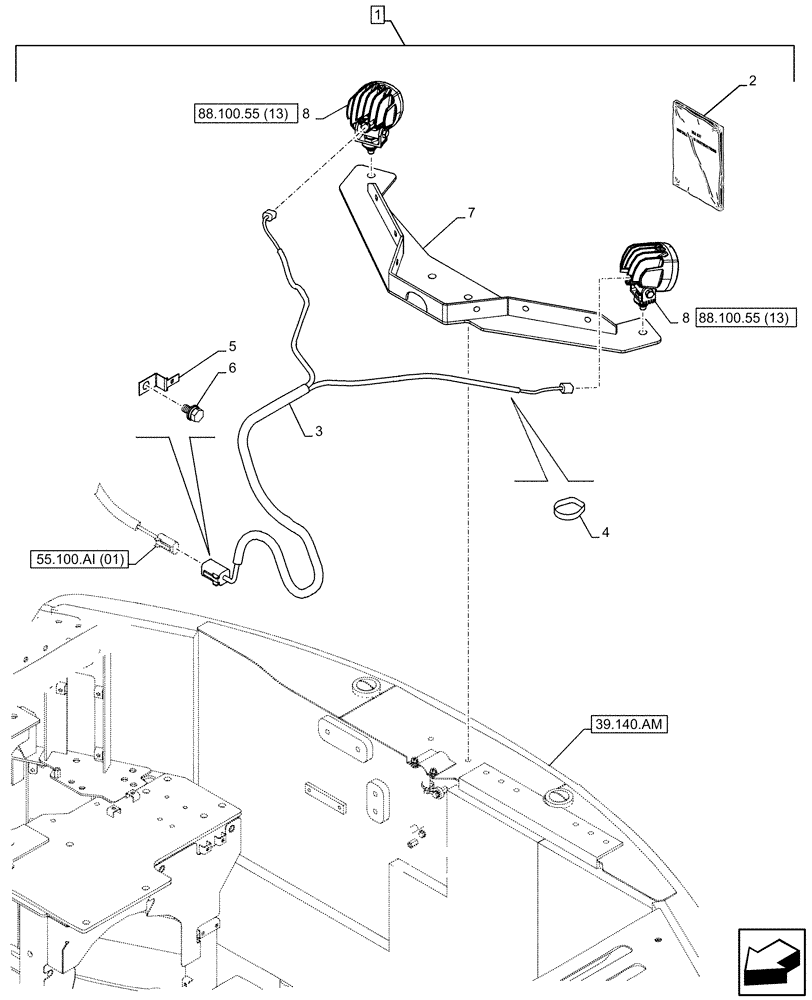

Схема запчастей Case CX160D LC - (88.100.55[10]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
8
88.100.55 (13)
6
8
88.100.55 (13)
3
5
1
7
55.100.ai (01)
4
2
39.140.am

Артикул

Название

Примечание

Количество

1

KG0LP436-00

CONSTRUCTION DIA

Right, Left, Rear View Camera, Light, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880441

INSTRUCTION

1шт.

2

47880479

INSTRUCTION

1шт.

3

KRR22501

WIRE HARNESS

1шт.

4

150496A1

MOUNTING CLIP

250mm

6шт.

5

158962A1

CLIP

1шт.

6

167518A1

BOLT

M8 x 16mm

1шт.

7

KHR41821

BRACKET

1шт.

8

KHR37950

WORK LAMP

Led 24V 13W, ASSY

2шт.

Выбрано товаров: 10
