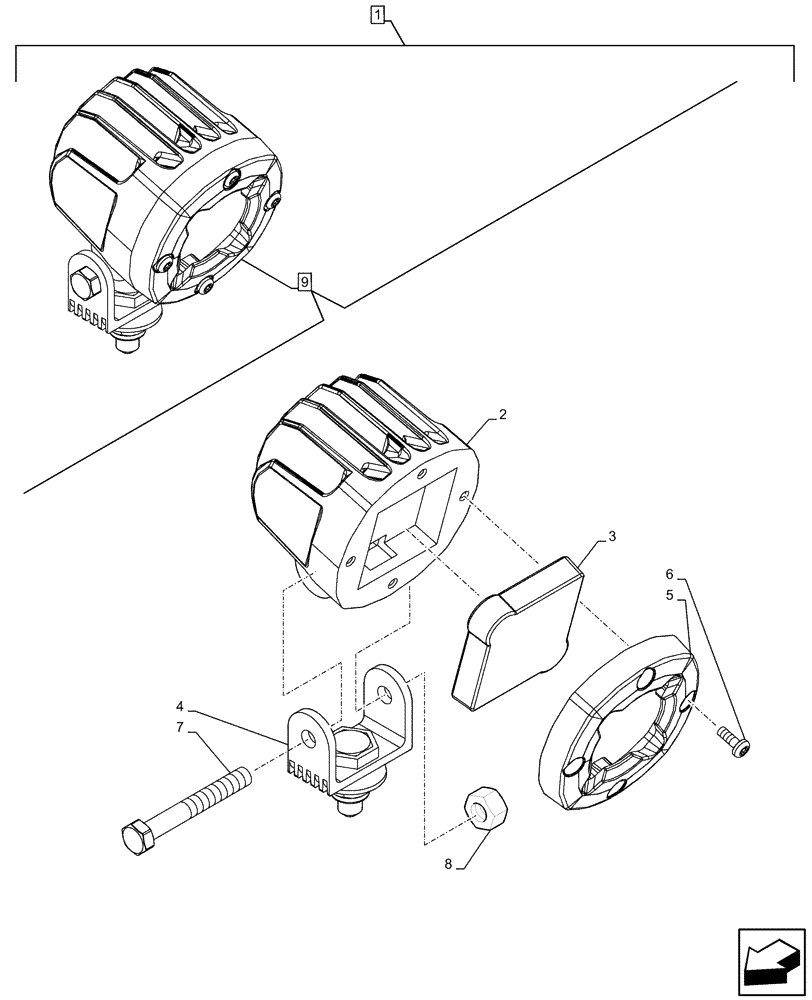

Запчасти Case CX160D LC (88.100.55[08]) - DIA KIT, REAR VIEW CAMERA, RIGHT, SIDE CAMERA, LIGHT, COMPONENTS (88) - ACCESSORIES

1

KG0LP435-00

CONSTRUCTION DIA

Rear View Camera, Left Side Camera, Light, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Lamp, Incl in 9

1шт.

3

KHR37970

LENS

1шт.

4

KHR37960

BRACKET

1шт.

5

KHR37980

COVER

1шт.

6

NSS

NOT SOLD SEPARAT

Screw, Incl in 9

4шт.

7

NSS

NOT SOLD SEPARAT

Bolt, Incl in 9

1шт.

8

NSS

NOT SOLD SEPARAT

Nut, Incl in 9

1шт.

9

KHR37950

WORK LAMP

ASSY, Incl 2 - 8

1шт.
