(88.100.55[07]) - DIA KIT, REAR VIEW CAMERA, RIGHT, SIDE CAMERA, LIGHT

Запчасти Case CX160D LC (88.100.55[07]) - DIA KIT, REAR VIEW CAMERA, RIGHT, SIDE CAMERA, LIGHT (88) - ACCESSORIES

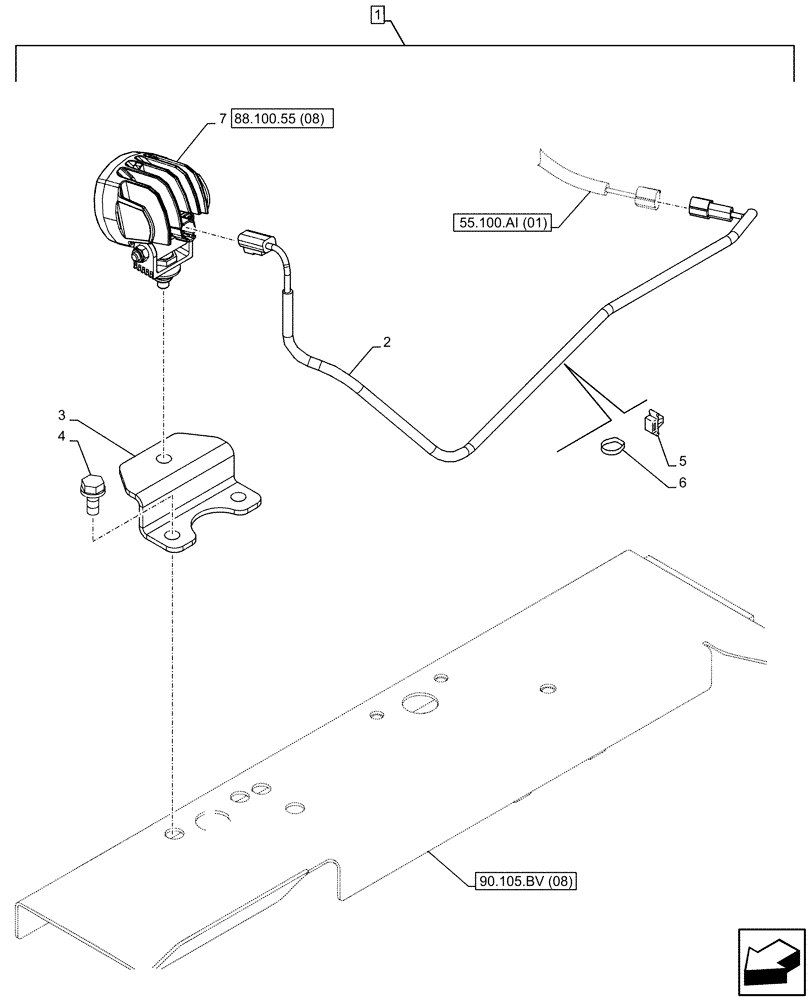

Схема запчастей Case CX160D LC - (88.100.55[07]) - DIA KIT, REAR VIEW CAMERA, RIGHT, SIDE CAMERA, LIGHT (88) - ACCESSORIES
5
3
4
90.105.bv (08)
55.100.ai (01)
1
88.100.55 (08)
2
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP435-00

CONSTRUCTION DIA

Rear View Camera, Left Side Camera, Light, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR41840

WIRE HARNESS

1шт.

3

KHR43760

BRACKET

1шт.

4

166052A1

BOLT

M10 x 25mm

2шт.

5

KHR10220

MOUNTING CLIP

4шт.

6

150496A1

MOUNTING CLIP

4шт.

7

KHR37950

WORK LAMP

Led 24V 13W, ASSY

1шт.
