Запчасти Case CX160D LC (88.100.55[06]) - DIA KIT, REAR VIEW CAMERA, RIGHT, SIDE CAMERA, LIGHT (88) - ACCESSORIES

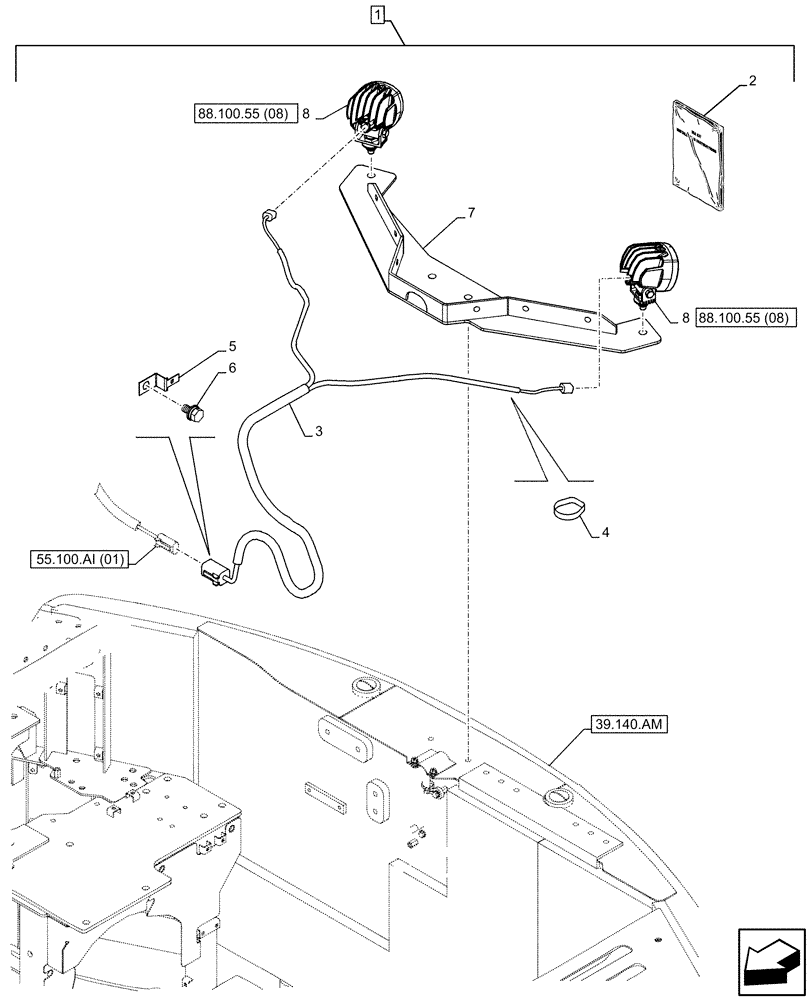

Схема запчастей Case CX160D LC - (88.100.55[06]) - DIA KIT, REAR VIEW CAMERA, RIGHT, SIDE CAMERA, LIGHT (88) - ACCESSORIES
5
8
88.100.55 (08)
8
3
55.100.ai (01)
88.100.55 (08)
4
39.140.am
7
1
2
6

Артикул

Название

Примечание

Количество

1

KG0LP435-00

CONSTRUCTION DIA

Rear View Camera, Left Side Camera, Light, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880440

INSTRUCTION

1шт.

2

47880478

INSTRUCTION

1шт.

3

KRR22501

WIRE HARNESS

1шт.

4

150496A1

MOUNTING CLIP

250mm

6шт.

5

158962A1

CLIP

1шт.

6

167518A1

BOLT

M8 x 16mm

1шт.

7

KHR41821

BRACKET

1шт.

8

KHR37950

WORK LAMP

Led 24V 13W, ASSY

2шт.

Выбрано товаров: 10
