(88.100.55[03]) - DIA KIT, REAR VIEW CAMERA, LIGHT

Запчасти Case CX160D LC (88.100.55[03]) - DIA KIT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

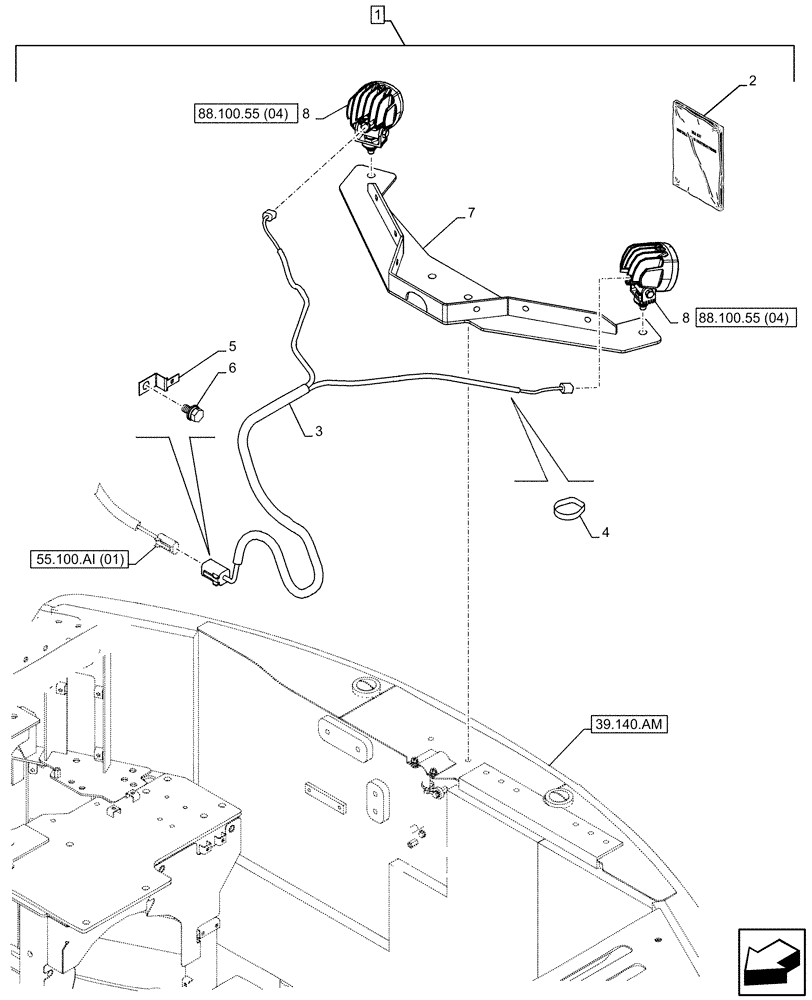

Схема запчастей Case CX160D LC - (88.100.55[03]) - DIA KIT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
7
5
2
3
8
88.100.55 (04)
39.140.am
6
55.100.ai (01)
1
4
88.100.55 (04)
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LR098-00

CONSTRUCTION DIA

Rear View Camera, Light, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880442

INSTRUCTION

1шт.

2

47880481

INSTRUCTION

1шт.

3

KRR22501

WIRE HARNESS

1шт.

4

150496A1

MOUNTING CLIP

250mm

6шт.

5

158962A1

CLIP

1шт.

6

167518A1

BOLT

M8 x 16mm

1шт.

7

KHR41821

BRACKET

1шт.

8

KHR37950

WORK LAMP

Led 24V 13W, ASSY

2шт.
