Запчасти Case CX160D LC (88.100.55[02]) - DIA KIT, FUEL TRANSFER PUMP, SUPPLY LINES (88) - ACCESSORIES

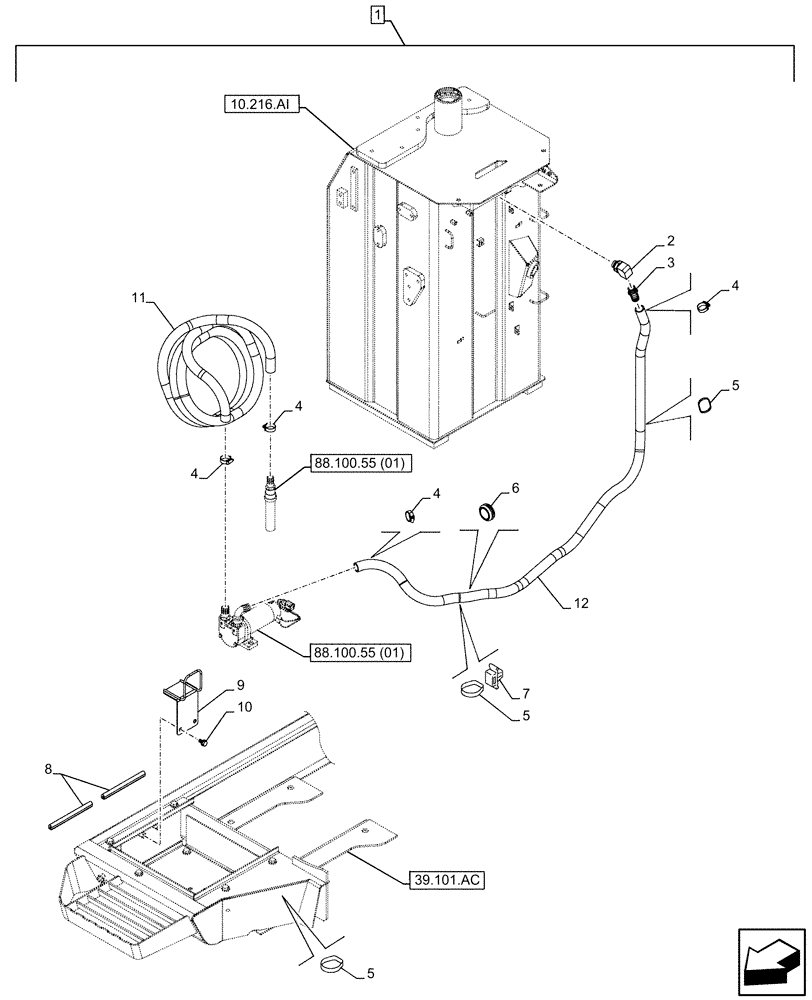

Схема запчастей Case CX160D LC - (88.100.55[02]) - DIA KIT, FUEL TRANSFER PUMP, SUPPLY LINES (88) - ACCESSORIES
10.216.ai
12
9
4
1
5
7
39.101.ac
3
10
6
88.100.55 (01)
11
4
2
88.100.55 (01)
8
5
4
4
5

Артикул

Название

Примечание

Количество

1

KG0LR102-00

CONSTRUCTION DIA

Fuel Feed Pump, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2320

ELBOW

1шт.

3

KHR11480

LUBE NIPPLE

1шт.

4

157917A1

COLLAR

4шт.

5

150496A1

MOUNTING CLIP

250mm

5шт.

6

167261A1

GROMMET

1шт.

7

KHR10220

MOUNTING CLIP

2шт.

8

KBN15710

SEAL PROTECTION

2шт.

9

KHR43530

BRACKET

1шт.

10

166052A1

BOLT

2шт.

11

KHR11460

FUEL HOSE

25mm ID x 4000mm

1шт.

12

KHR34100

HOSE

1шт.

Выбрано товаров: 13
