(88.100.55[01]) - DIA KIT, FUEL TRANSFER PUMP

Запчасти Case CX160D LC (88.100.55[01]) - DIA KIT, FUEL TRANSFER PUMP (88) - ACCESSORIES

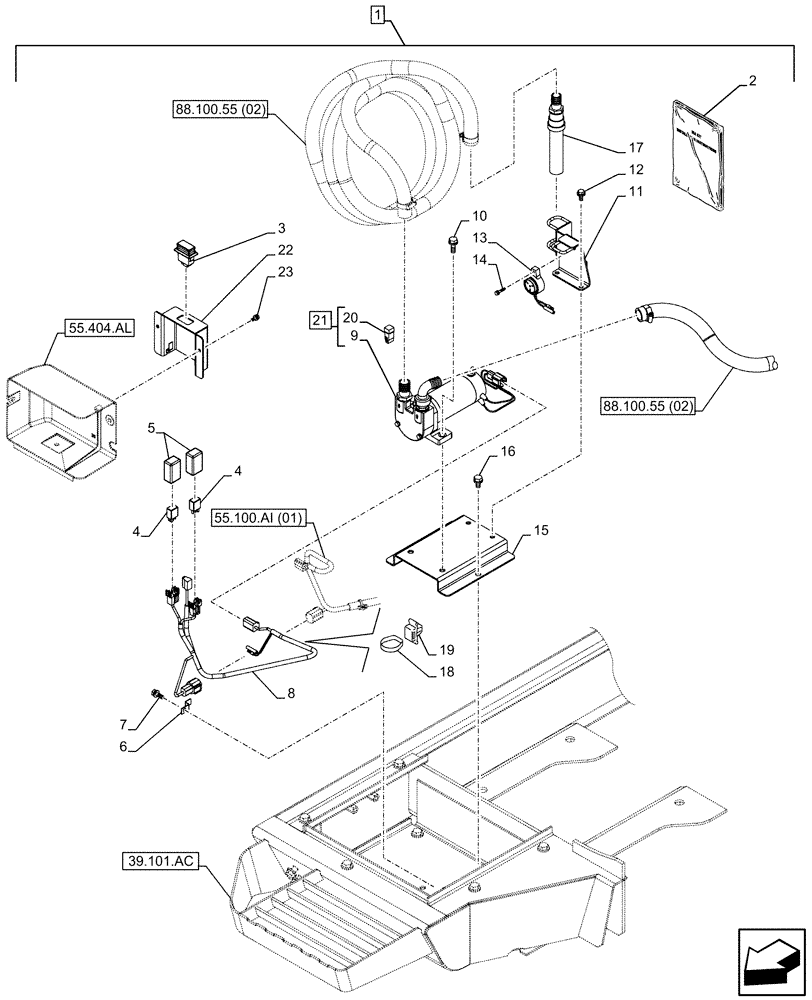

Схема запчастей Case CX160D LC - (88.100.55[01]) - DIA KIT, FUEL TRANSFER PUMP (88) - ACCESSORIES
20
11
7
16
14
39.101.ac
9
21
10
55.404.al
55.100.ai (01)
88.100.55 (02)
15
12
1
13
18
22
5
4
8
17
88.100.55 (02)
2
6
3
19
23
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LR102-00

CONSTRUCTION DIA

Fuel Feed Pump, Incl 2 - 23

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880437

INSTRUCTION

1шт.

3

KHR12900

SWITCH

1шт.

4

KHR3802

RELAY

24V

2шт.

5

159904A1

COVER

2шт.

6

KHR37410

CLIP

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

8

KHR43610

WIRE HARNESS

1шт.

9

NSS

NOT SOLD SEPARAT

Pump, Incl in 21

1шт.

10

166347A1

BOLT,Sems, M10 x 30mm

2шт.

11

KHR43540

BRACKET

1шт.

12

166350A1

BOLT

M8 x 20mm

2шт.

13

KHR4024

ALARM

1шт.

14

KHR1832

SPECIAL BOLT

M5 x 25mm

1шт.

15

KHR43600

BRACKET

1шт.

16

166351A1

BOLT,Sems, M10 x 20mm

2шт.

17

KHR12430

VALVE SECTION

1шт.

18

150496A1

MOUNTING CLIP

250mm

1шт.

19

KHR10220

MOUNTING CLIP

1шт.

20

KHR4053

FUSE

10A

1шт.

21

KHR12840

FUEL PUMP

Fuel Feed, 50L/Min, ASSY, Incl 9, 20

1шт.

22

KHR15080

COVER

1шт.

23

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.
