/ / / / / / / / (10.304.AF[02]) - VAR - 488034 - ENGINE OIL FILTER, DRAIN LINE
Запчасти Case CX160D LC (10.304.AF[02]) - VAR - 488034 - ENGINE OIL FILTER, DRAIN LINE (10) - ENGINE

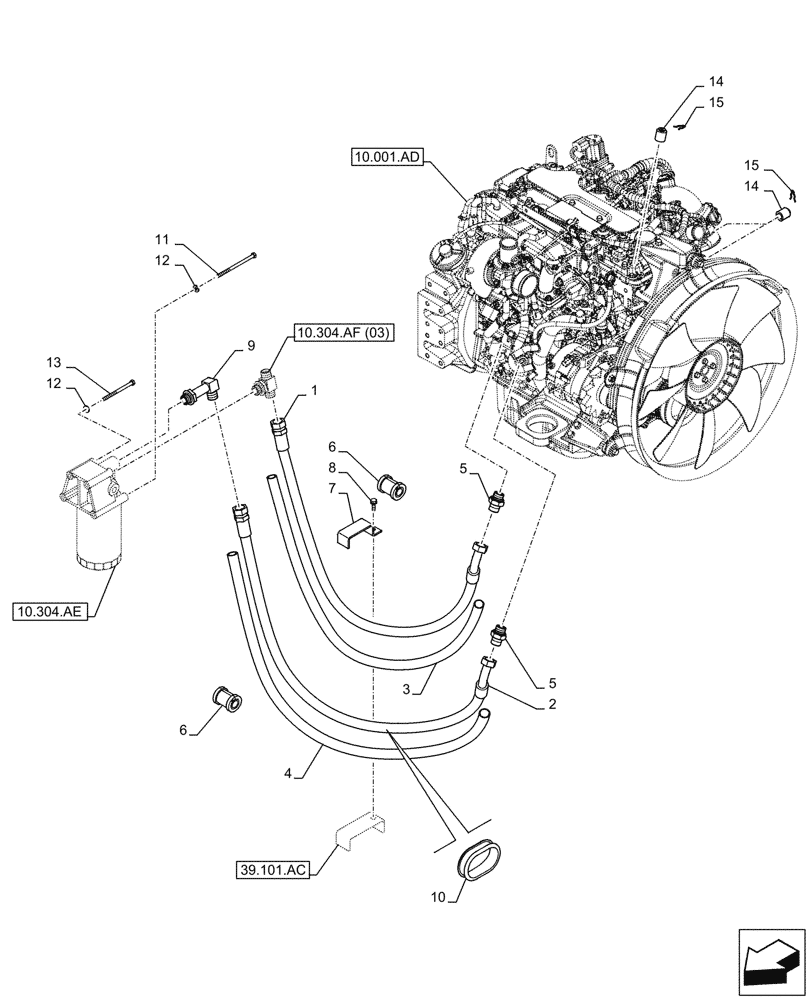

![Схема запчастей Case CX160D LC - (10.304.AF[02]) - VAR - 488034 - ENGINE OIL FILTER, DRAIN LINE (10) - ENGINE](https://partsell.ru/storage/images/casece/5361079.png)
10.304.ae
15
13
7
10
15
39.101.ac
14
12
4
14
6
10.001.ad
8
11
9
5
6
2
12
10.304.af (03)
3
1
5
1
ADH11460
HYDRAULIC HOSE
1200mm
1шт.
2
ADH11470
HYDRAULIC HOSE
1300mm
1шт.
3
157863A1
PROTECTIVE SLEEVE
1шт.
4
KMR12250
PROTECTIVE SLEEVE
1шт.
5
KHH14620
ADAPTER
G3/4" x G3/4"
2шт.
6
KHJ2022
HOSE CLAMP
2шт.
7
KHH13550
BRACKET
1шт.
8
166052A1
BOLT
M10 x 25mm
1шт.
9
KHH14690
ELBOW
G3/4"
1шт.
10
KRR1326
GROMMET
1шт.
11
KHH0515
BOLT
M8 x 140mm
2шт.
12
153081A1
WASHER
4шт.
13
102R008Y110R
BOLT
M8 x 110mm
2шт.
14
KHH14570
CAP
6шт.
15
KHH14600
LOCK PIN
6шт.
