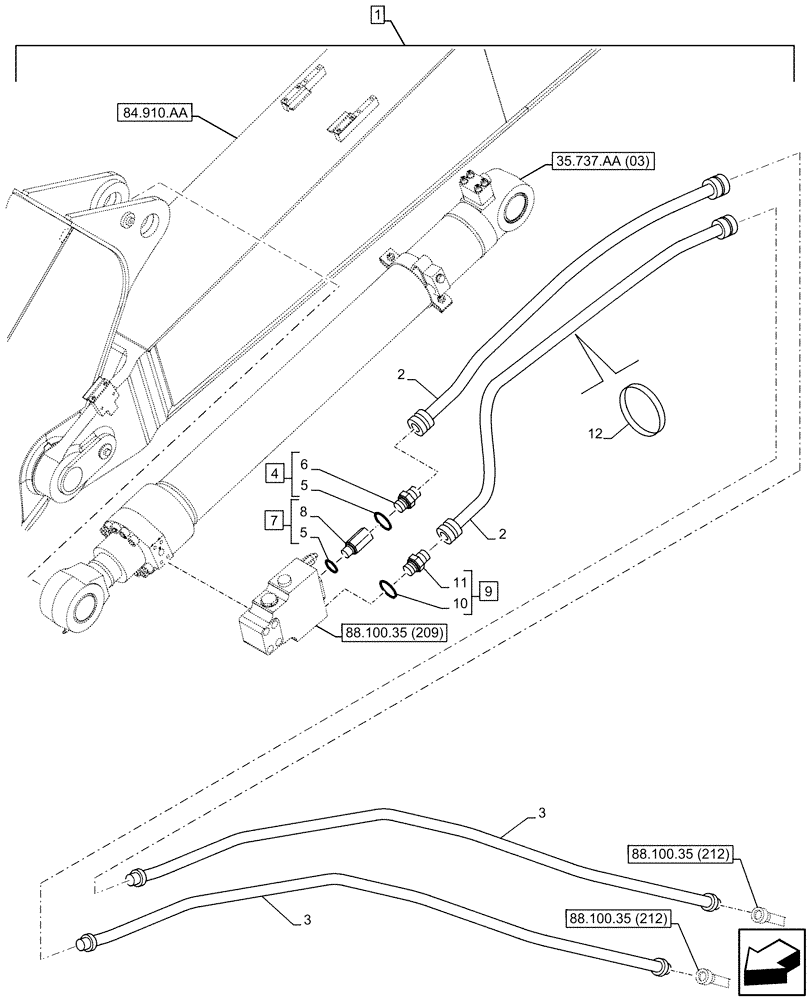

Запчасти Case CX160D LC (88.100.35[211]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG0LP439-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ17060

HYDRAULIC HOSE

9mm ID x 2450mm

2шт.

3

KLV12350

HYD TUBE

2шт.

4

152747A1

ADAPTER

ASSY, Incl 5 (Qty 1), 6

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

162525A1

STUD

ASSY, Incl 5 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Stud, Incl in 7

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 10, 11

1шт.

10

154475A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

150067A1

MOUNTING CLIP

150mm

7шт.
