(88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX160D LC (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

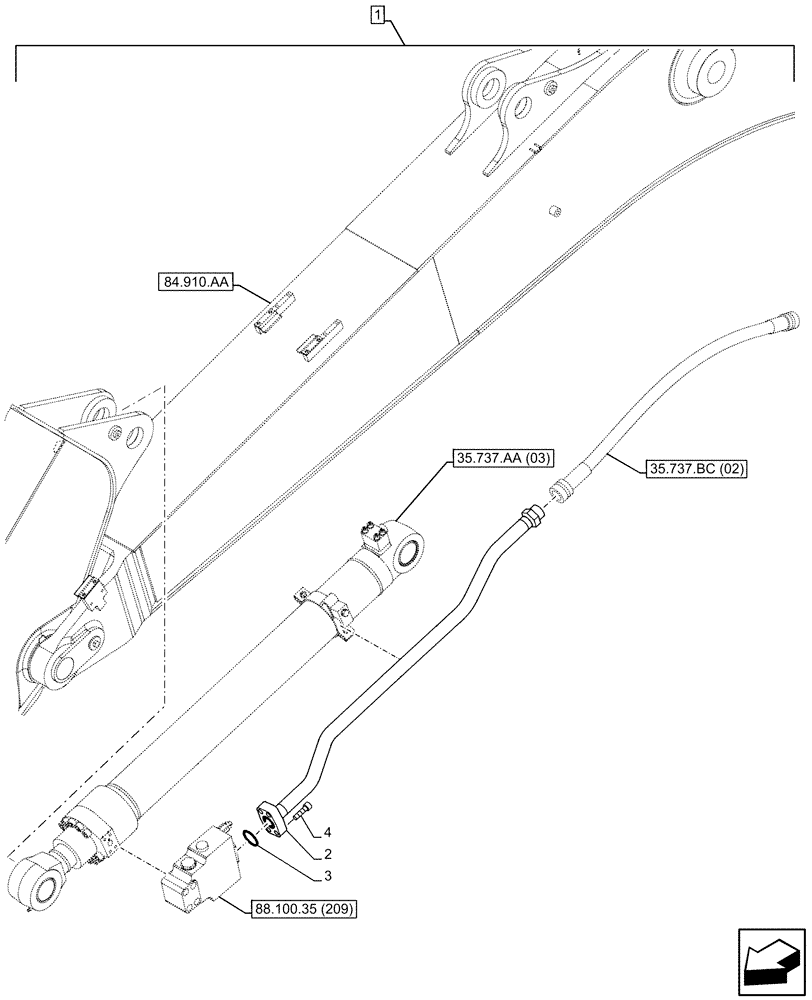

Схема запчастей Case CX160D LC - (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
35.737.bc (02)
84.910.aa
1
35.737.aa (03)
3
4
88.100.35 (209)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP439-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KLV11720

HYD TUBE

1шт.

3

155210A1

O-RING

1шт.

4

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

Выбрано товаров: 5
