(88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE

Запчасти Case CX160D LC (88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE (88) - ACCESSORIES

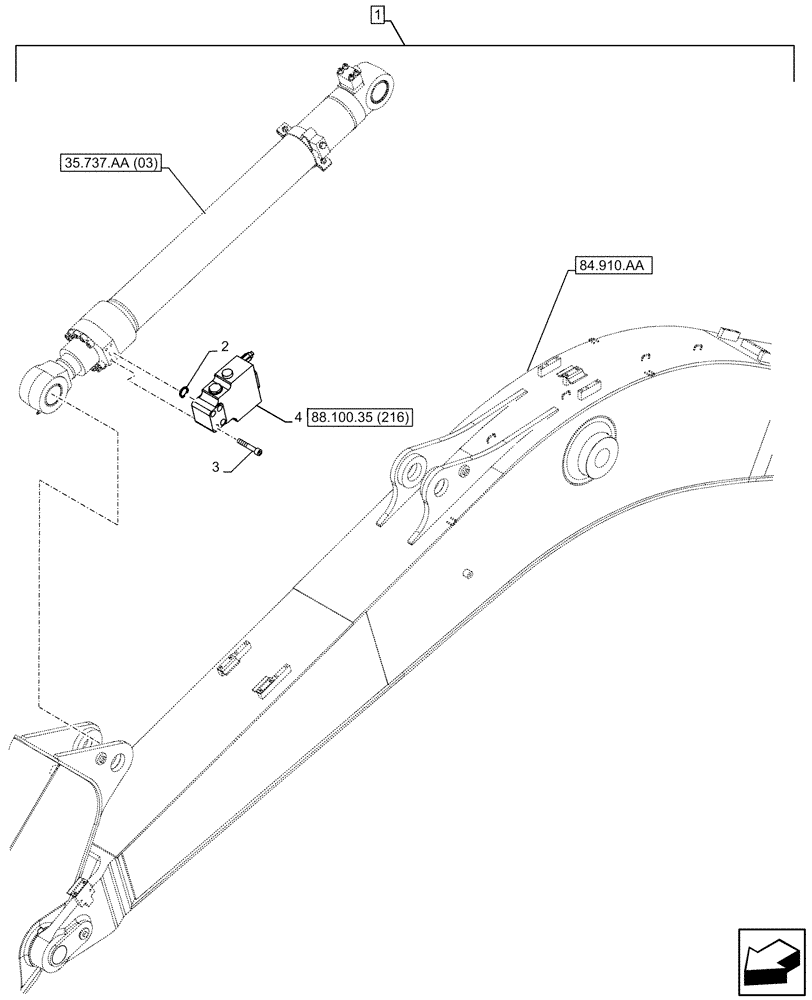

Схема запчастей Case CX160D LC - (88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE (88) - ACCESSORIES
2
3
1
88.100.35 (216)
35.737.aa (03)
4
84.910.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP439-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155210A1

O-RING

1шт.

3

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

4

KNV26480

VALVE

ASSY

1шт.

Выбрано товаров: 5
