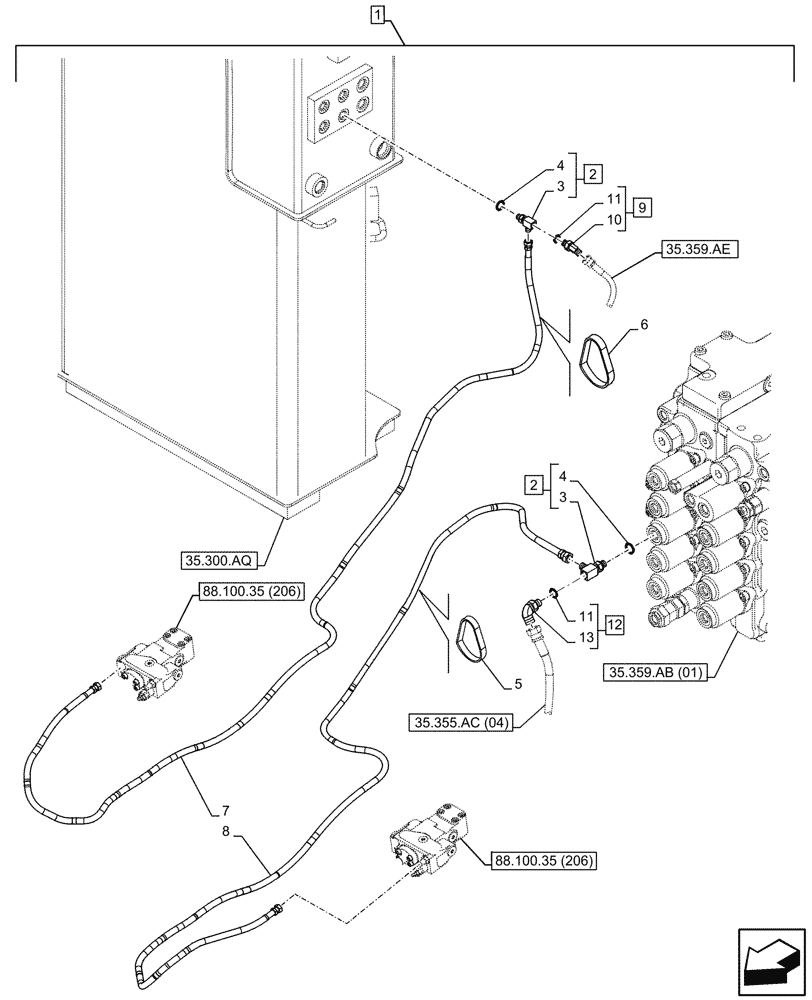

Запчасти Case CX160D LC (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG0LP439-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2773

TEE

ASSY G1/4", Incl 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 2

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

150496A1

MOUNTING CLIP

250mm

1шт.

6

150071A1

MOUNTING CLIP

380mm

1шт.

7

KHJ27940

HYDRAULIC HOSE

3450mm

1шт.

8

KHJ20970

HYDRAULIC HOSE

3500mm

1шт.

9

KHJ28630

ELBOW

ASSY, 45°, G1/4" x G1/4", Incl 10, 11 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 9

1шт.

11

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

12

KHJ28710

ELBOW

ASSY, 90°, G1/4" x G3/8", Incl 11 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 12

1шт.
