(88.100.35[207]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, COMPONENTS

Запчасти Case CX160D LC (88.100.35[207]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, COMPONENTS (88) - ACCESSORIES

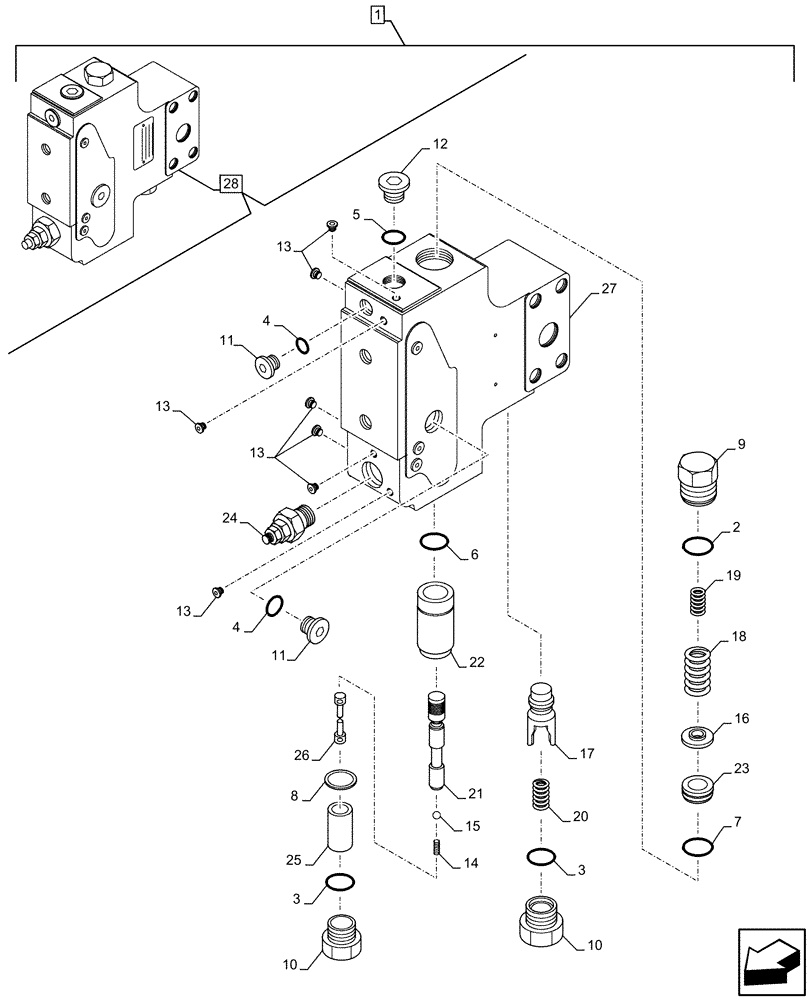

Схема запчастей Case CX160D LC - (88.100.35[207]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, COMPONENTS (88) - ACCESSORIES
11
12
11
3
8
4
2
20
23
17
13
26
10
13
10
21
9
22
13
18
1
28
15
25
13
14
27
4
5
6
16
24
3
7
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP439-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 28

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154508A1

O-RING

1шт.

3

154491A1

O-RING

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

154475A1

O-RING

1шт.

6

LBQ6019

O-RING

1шт.

7

LBQ6021

O-RING

1шт.

8

LE015010

SEAL

1шт.

9

LK005710

PLUG

1шт.

10

LK005700

PLUG

2шт.

11

LK00015

PLUG

2шт.

12

LK00008

PLUG

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 28

8шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Incl in 28

1шт.

15

NSS

NOT SOLD SEPARAT

Steel Ball, Incl in 28

1шт.

16

LR015420

SPRING SEAT

1шт.

17

LJ014850

VALVE POPPET

1шт.

18

LG006110

COMPRESSION SPRING

1шт.

19

LG006100

COMPRESSION SPRING

1шт.

20

LG006090

COMPRESSION SPRING

1шт.

21

NSS

NOT SOLD SEPARAT

Spool, Incl in 28

1шт.

22

NSS

NOT SOLD SEPARAT

Bushing, Incl in 28

1шт.

23

NSS

NOT SOLD SEPARAT

Bushing, Incl in 28

1шт.

24

LJ014840

VALVE PRESSURE RELIE

1шт.

25

LJ014830

PISTON

1шт.

26

LJ014820

PISTON

1шт.

27

NSS

NOT SOLD SEPARAT

Body, Incl in 28

1шт.

28

KNV12850

VALVE SECTION

ASSY, Incl 2 - 27

1шт.
