(88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE

Запчасти Case CX160D LC (88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE (88) - ACCESSORIES

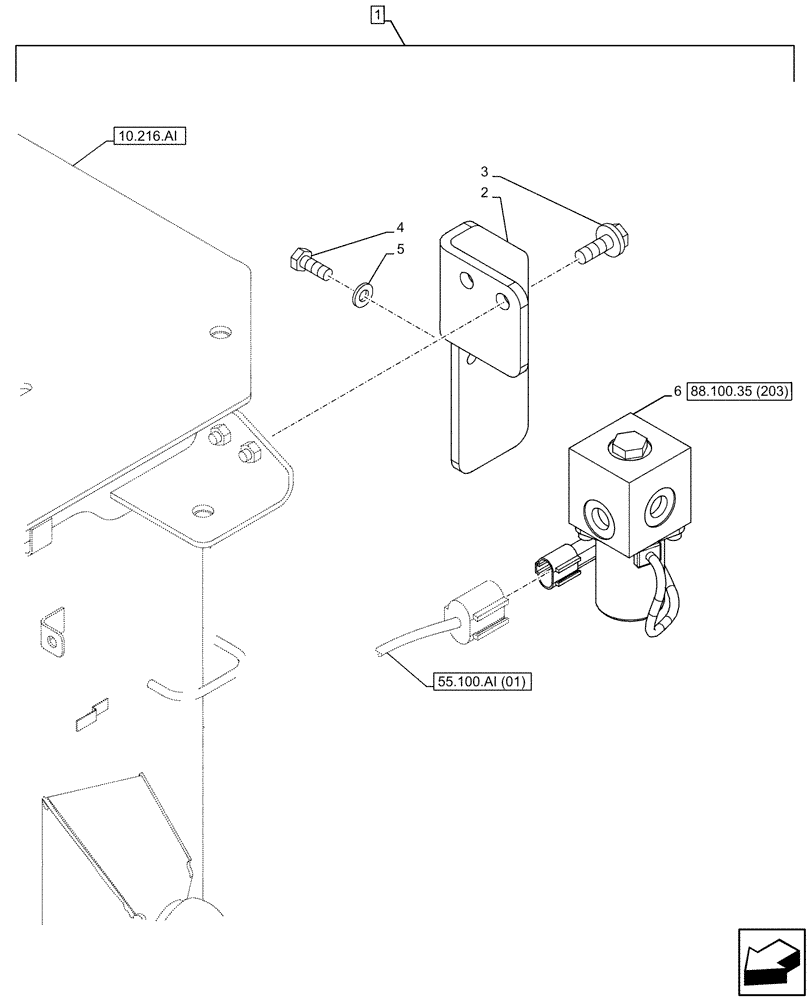

Схема запчастей Case CX160D LC - (88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE (88) - ACCESSORIES
55.100.ai (01)
6
5
1
88.100.35 (203)
2
4
3
10.216.ai
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP429-00

CONSTRUCTION DIA

Free Swing Line, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KLJ14520

BRACKET

1шт.

3

167182A1

BOLT,Sems, M8 x 25mm

2шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

5

183-106VR

SPRING WASHER

2шт.

6

159205A1

VALVE

ASSY

1шт.
