(88.100.35[167]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE

Запчасти Case CX160D LC (88.100.35[167]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES

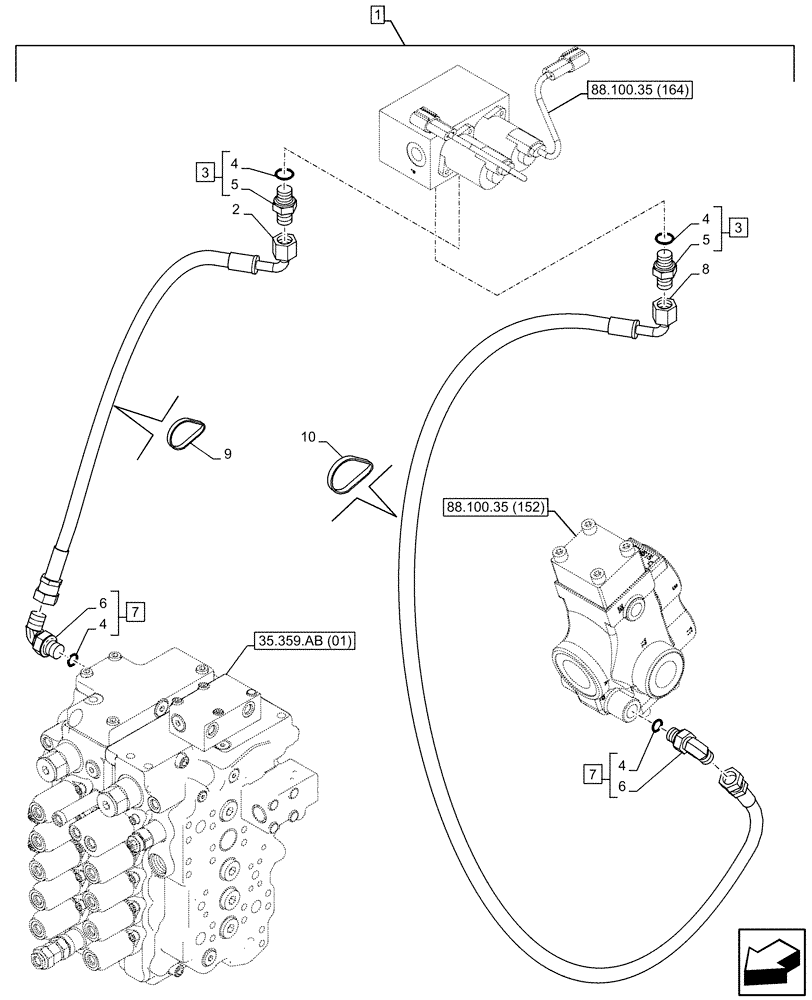

Схема запчастей Case CX160D LC - (88.100.35[167]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES
5
1
3
4
2
4
9
6
7
5
35.359.ab (01)
10
4
88.100.35 (152)
8
6
7
88.100.35 (164)
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

6mm ID x 3600mm

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 5

2шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 7

2шт.

7

KHJ28580

ELBOW

ASSY, Incl 4 (Qty 1), 6

2шт.

8

KHJ34950

HYDRAULIC HOSE

6mm ID x 4250mm

1шт.

9

150498A1

MOUNTING CLIP

300mm

5шт.

10

150071A1

MOUNTING CLIP

380mm

6шт.
