(88.100.35[163]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE

Запчасти Case CX160D LC (88.100.35[163]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES

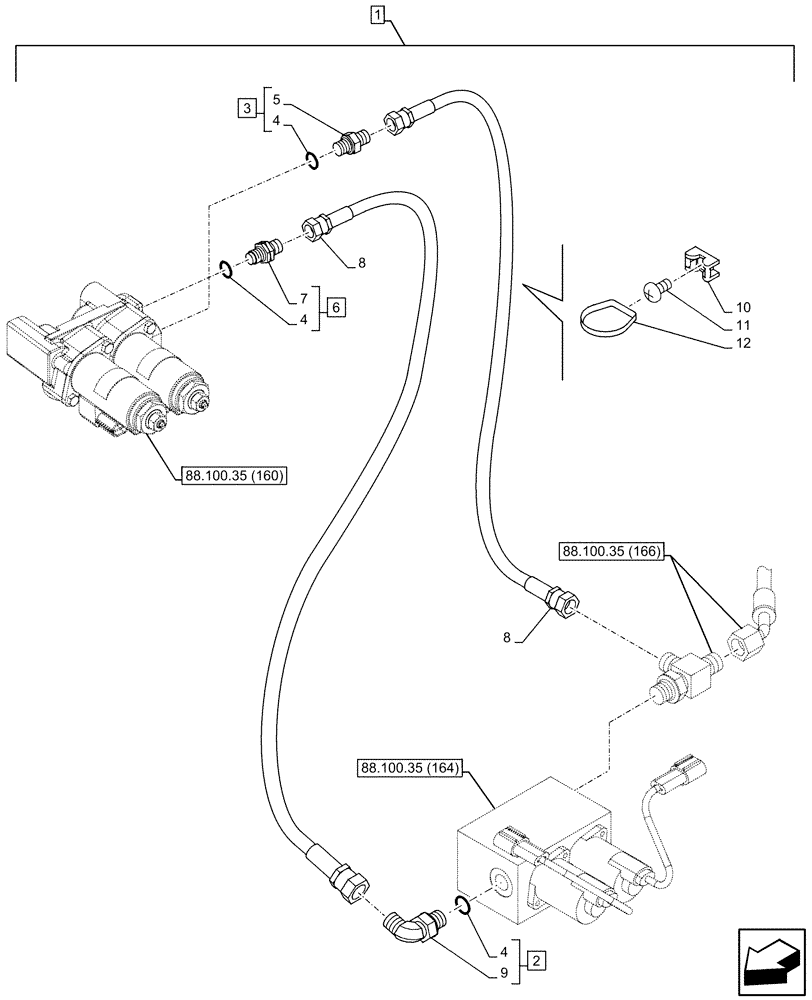

Схема запчастей Case CX160D LC - (88.100.35[163]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES
4
7
1
88.100.35 (160)
88.100.35 (166)
4
9
2
3
11
4
10
8
6
5
8
88.100.35 (164)
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 9

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4 (Qty 1), 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KHJ2246

HOSE

6mm ID x 600mm

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

1шт.

10

150860A1

COLLAR

2шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

12

150496A1

MOUNTING CLIP

2шт.
