(88.100.35[162]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR

Запчасти Case CX160D LC (88.100.35[162]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

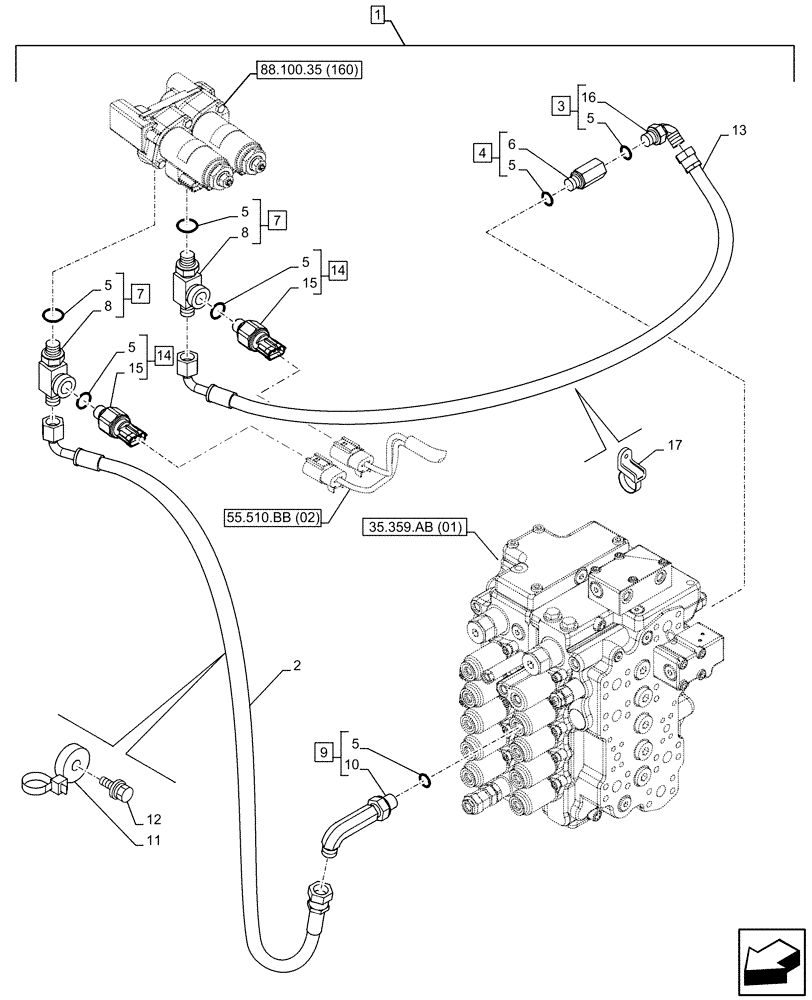

Схема запчастей Case CX160D LC - (88.100.35[162]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES
5
5
35.359.ab (01)
6
14
10
2
3
5
12
7
8
8
11
55.510.bb (02)
5
88.100.35 (160)
4
16
15
7
14
5
9
15
5
17
13
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2248

HOSE

6mm ID x 2950mm

1шт.

3

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 16

1шт.

4

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 6

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

6

NSS

NOT SOLD SEPARAT

Stud, Incl in 4

1шт.

7

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 5 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

KHJ28810

ELBOW

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 9

1шт.

11

KHR2584

CLAMP

M8

1шт.

12

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

13

KHJ2198

HOSE,6.3mm ID x 2850mm L

1шт.

14

KHR26940

SENSOR

ASSY, Pressure Sensor, 5MPa, Incl 5 (Qty 2), 15

2шт.

15

NSS

NOT SOLD SEPARAT

Sensor, Incl in 14

2шт.

16

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

17

KHR2581

CLAMP

1шт.
