Запчасти Case CX160D LC (88.100.35[160]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER (88) - ACCESSORIES

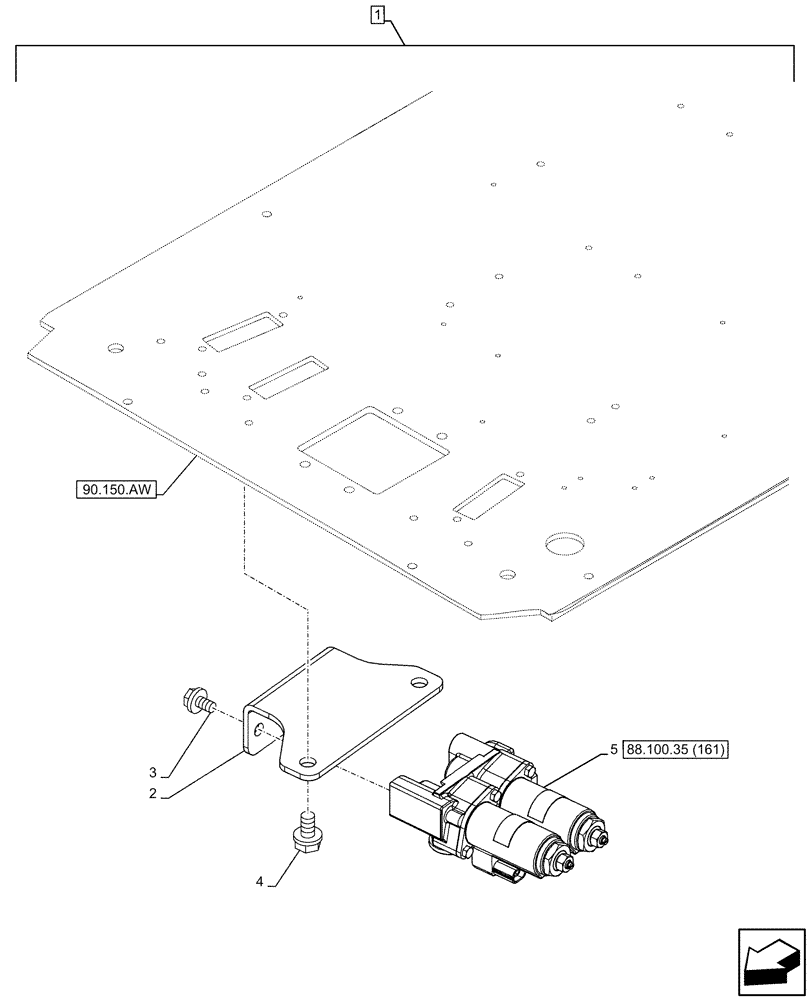

Схема запчастей Case CX160D LC - (88.100.35[160]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER (88) - ACCESSORIES
90.150.aw
2
1
5
88.100.35 (161)
3
4

Артикул

Название

Примечание

Количество

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28770

BRACKET

1шт.

3

166345A1

BOLT

M8 x 16mm

2шт.

4

166351A1

BOLT,Sems, M10 x 20mm

2шт.

5

MFJ71500

VALVE SECTION

ASSY

1шт.

Выбрано товаров: 6
