(88.100.35[159]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, WIRE HARNESS

Запчасти Case CX160D LC (88.100.35[159]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, WIRE HARNESS (88) - ACCESSORIES

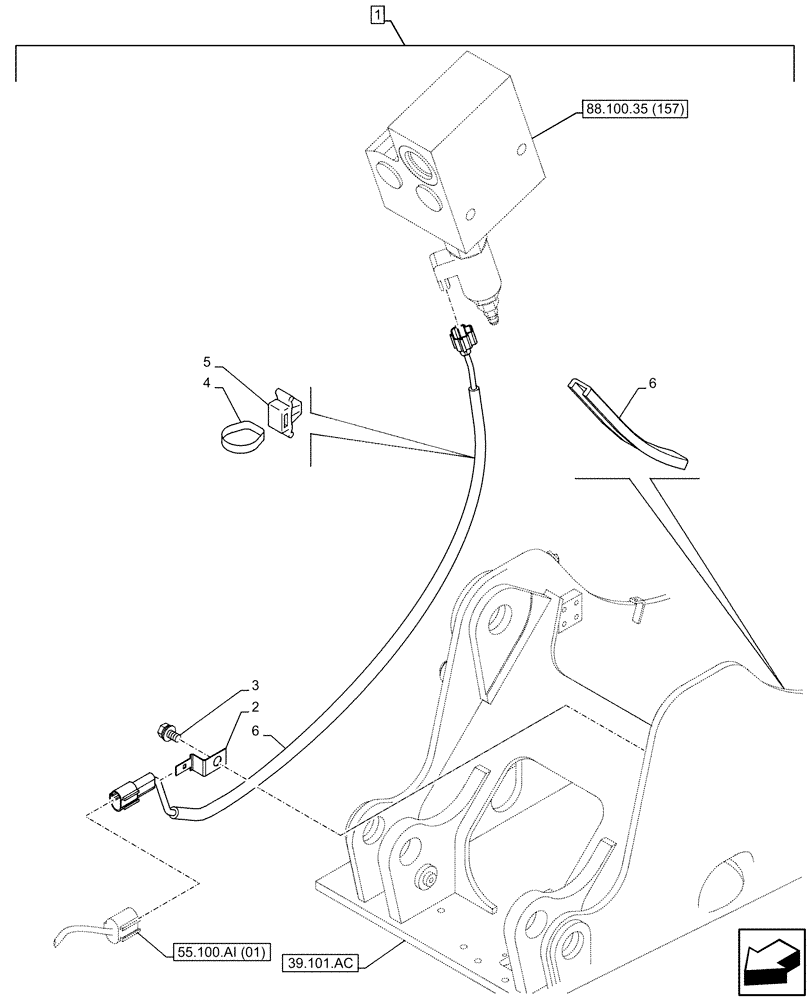

Схема запчастей Case CX160D LC - (88.100.35[159]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, WIRE HARNESS (88) - ACCESSORIES
5
1
55.100.ai (01)
6
6
88.100.35 (157)
4
2
39.101.ac
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

158962A1

CLIP

1шт.

3

167518A1

BOLT

M8 x 16mm

1шт.

4

150496A1

MOUNTING CLIP

250mm

1шт.

5

KHR10220

MOUNTING CLIP

1шт.

6

KHR25520

WIRE HARNESS

1шт.
