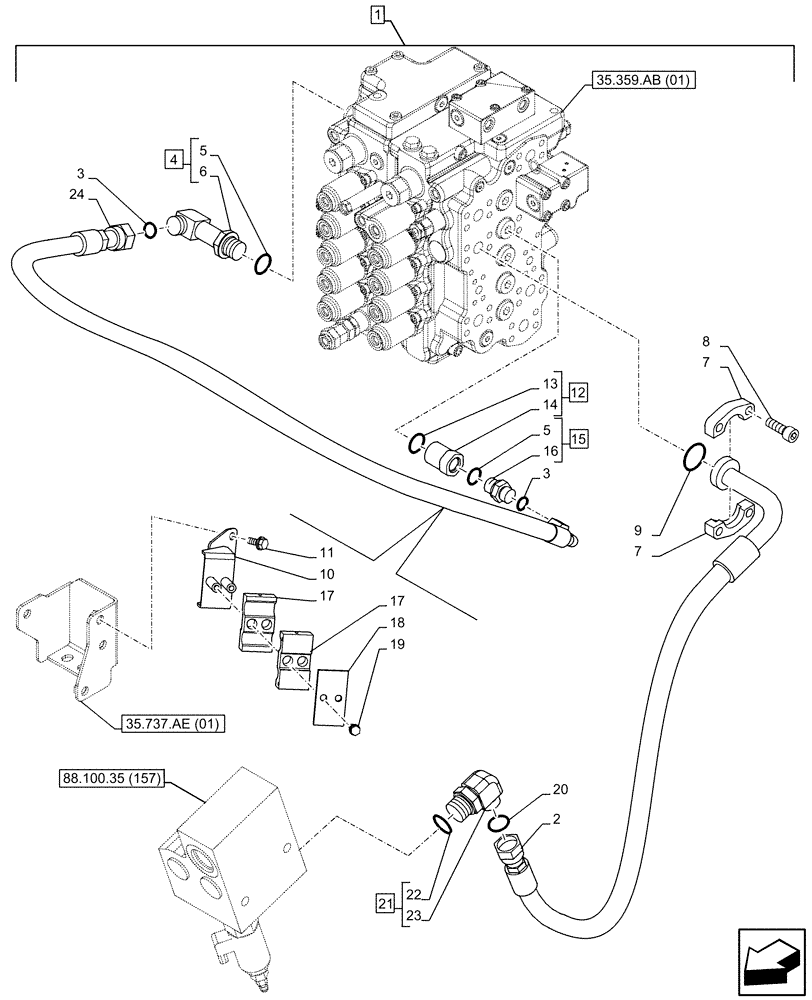

Запчасти Case CX160D LC (88.100.35[156]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, LINE (88) - ACCESSORIES

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 24

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KLJ14680

HYDRAULIC HOSE

19mm ID x 680mm

1шт.

3

155204A1

O-RING

2шт.

4

KHJ14690

ELBOW

ASSY, Incl 5 (Qty 1), 6

1шт.

5

154487A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

7

153458A1

FLANGE

2шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

9

155210A1

O-RING

1шт.

10

KNJ18430

BRACKET

1шт.

11

166352A1

BOLT

M12 x 30mm

2шт.

12

KHJ14720

CHECK VALVE

ASSY, Incl 13, 14

1шт.

13

154495A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

15

KHJ14710

ADAPTER

ASSY, Incl 5(Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

KLJ14740

HOSE CLAMP

2шт.

18

KRH10210

PLATE

1шт.

19

166347A1

BOLT,Sems, M10 x 30mm

2шт.

20

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

21

KHJ14700

ELBOW

ASSY, Incl 22, 23

1шт.

22

154523A1

O-RING

1шт.

23

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 21

1шт.

24

KLJ13990

HYDRAULIC HOSE

12mm ID x 950mm

1шт.
