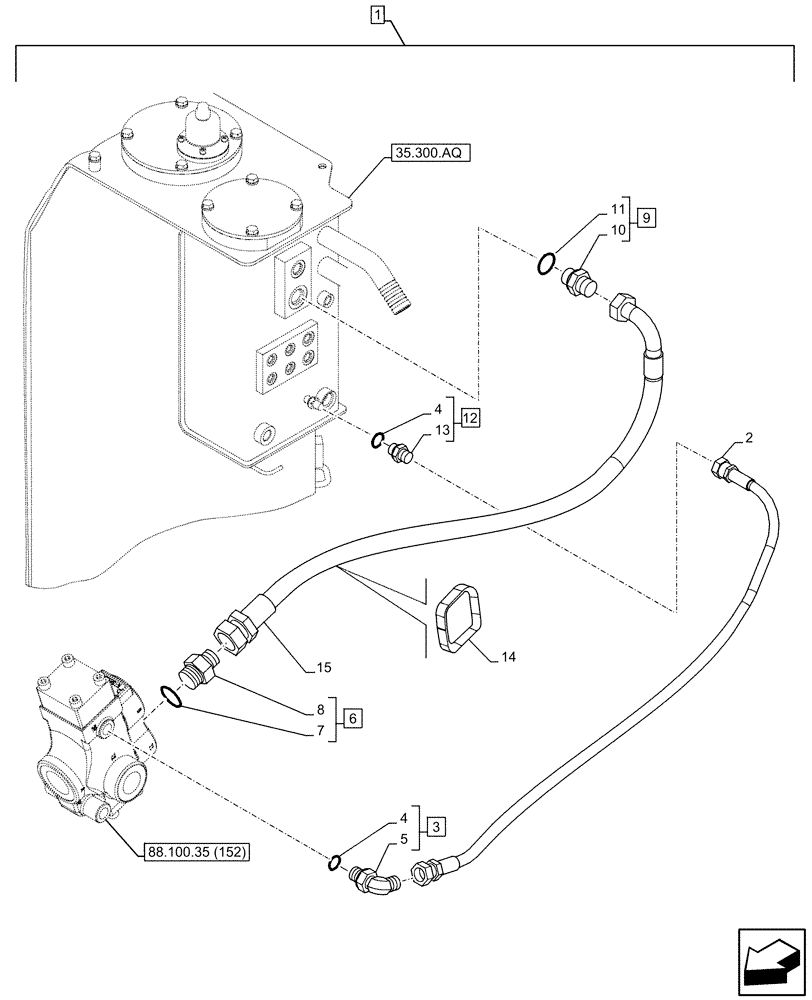

Запчасти Case CX160D LC (88.100.35[155]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2245

HOSE

6mm ID x 850mm

1шт.

3

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

169040A1

ADAPTER

ASSY, G1" x G3/4", Incl 7, 8

1шт.

7

154523A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in6

1шт.

9

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4", Incl 10, 11

1шт.

10

154503A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

14

150496A1

MOUNTING CLIP

250mm

10шт.

15

KLJ14020

HYDRAULIC HOSE

19mm ID x 790mm

1шт.
