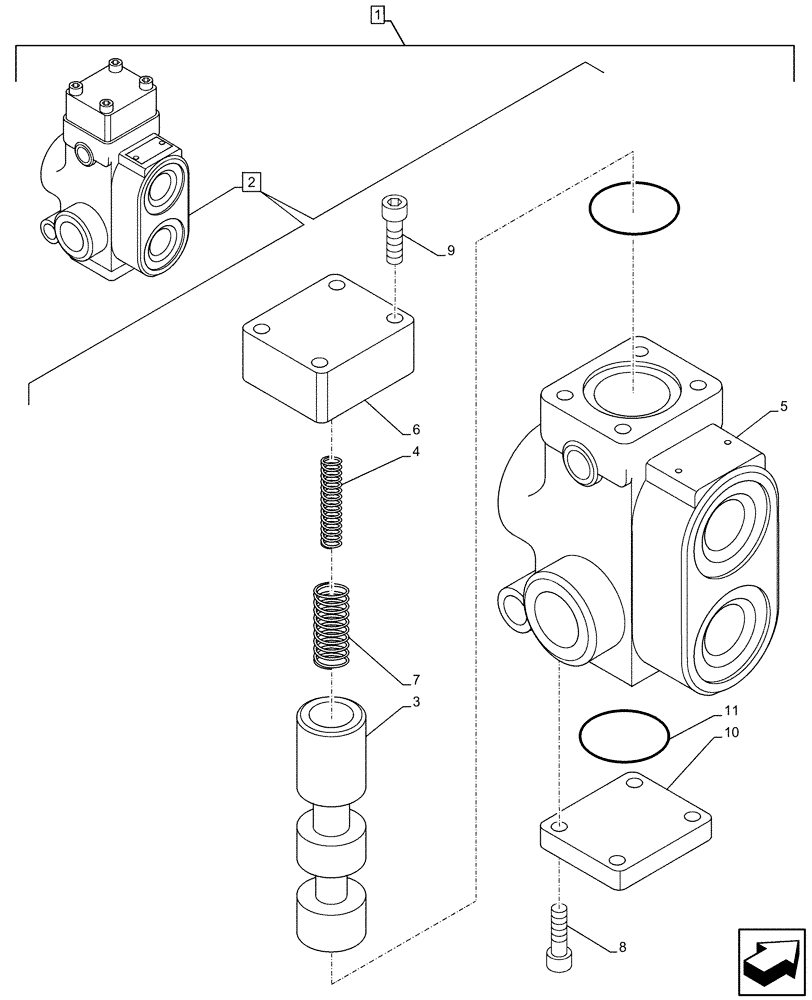

Запчасти Case CX160D LC (88.100.35[153]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, COMPONENTS (88) - ACCESSORIES

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ10420

VALVE SECTION

ASSY, Incl 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

4

LG005800

COMPRESSION SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

6

LW004970

COVER

1шт.

7

LG005810

COMPRESSION SPRING

1шт.

8

108R008Y025N

BOLT

4шт.

9

108R008Y045R

BOLT

4шт.

10

LW004960

COVER

1шт.

11

154569A1

O-RING

2шт.
