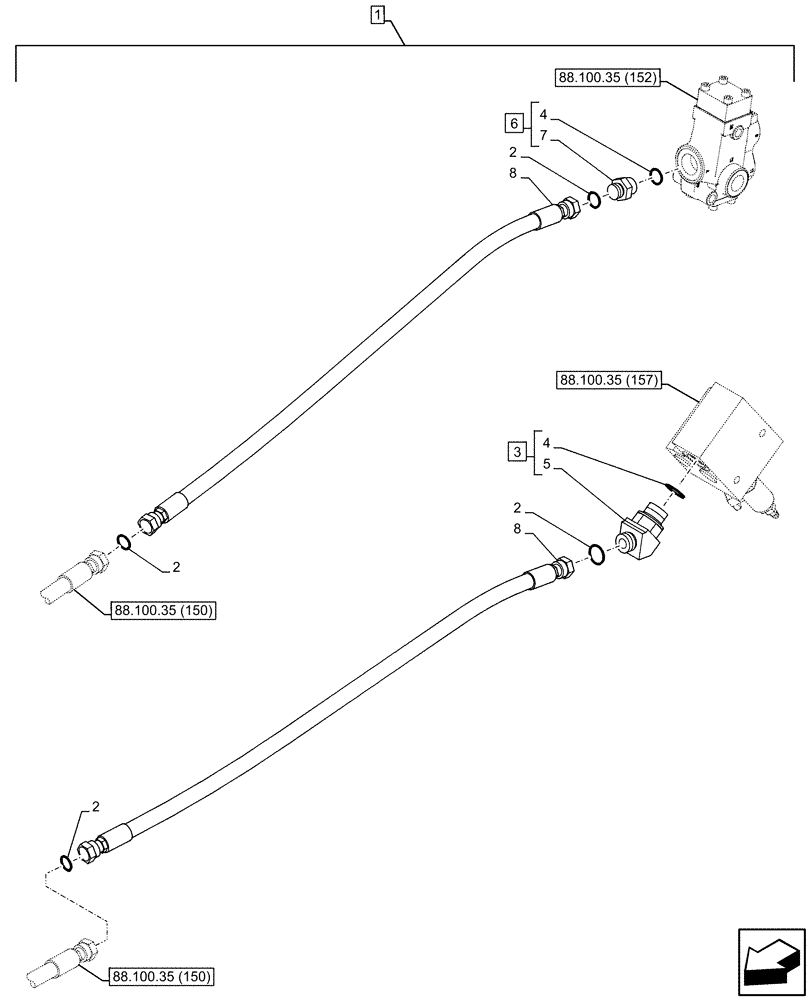

Запчасти Case CX160D LC (88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG0LP422-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

3

KHJ16290

ELBOW

ASSY, Incl 4 (Qty 1), 5

1шт.

4

152211A1

O-RING

2шт.

5

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 3

1шт.

6

KHJ1941

FITTING

ASSY, Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

2шт.
