(88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE

Запчасти Case CX160D LC (88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

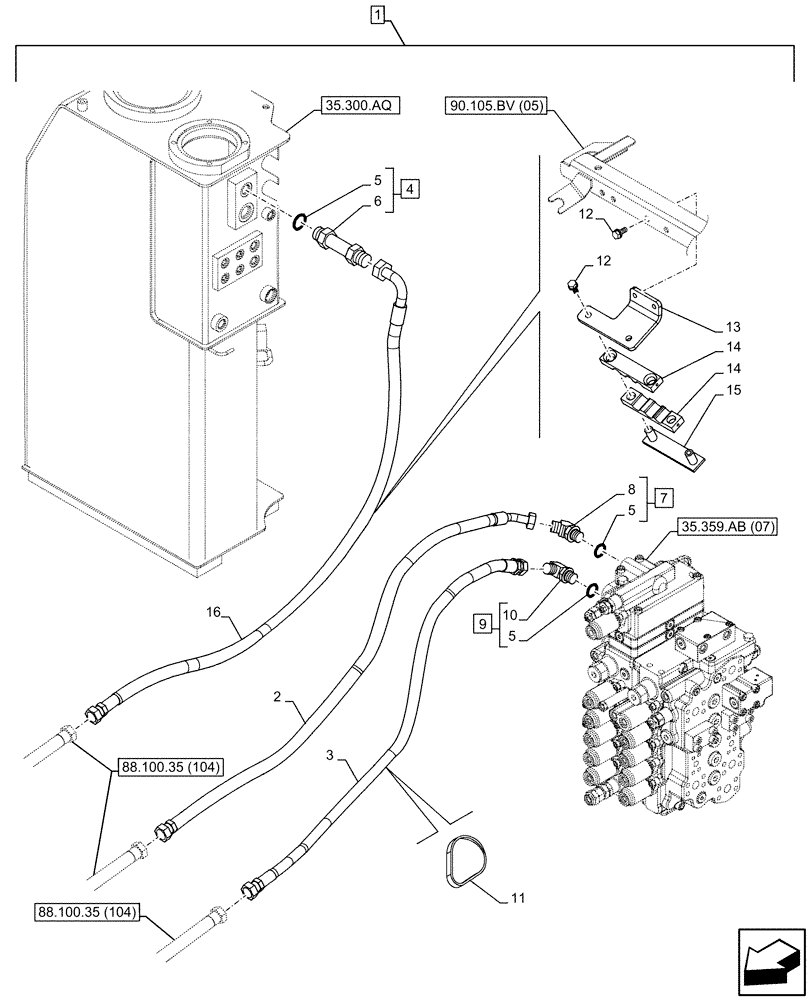

Схема запчастей Case CX160D LC - (88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES
88.100.35 (104)
14
12
10
2
5
88.100.35 (104)
5
35.359.ab (07)
8
13
5
12
3
1
90.105.bv (05)
14
11
4
16
9
6
35.300.aq
15
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP428-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KLJ14480

HYDRAULIC HOSE

12mm ID x 1530mm

1шт.

3

KLJ14460

HYDRAULIC HOSE

12mm ID x 1410mm

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 5 (Qty 1), 6

1шт.

5

150539A1

O-RING

3шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

159361A1

ADAPTER

ASSY, G1/2" x G1/2", Incl 5 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

KHJ1044

ELBOW

ASSY, G1/2" x G1/2", Incl 5 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 9

1шт.

11

166347A1

BOLT,Sems, M10 x 30mm

4шт.

12

KLJ14500

BRACKET

1шт.

13

KRJ11580

HOSE CLIP

2шт.

14

KNJ13200

PLATE

1шт.

15

150496A1

MOUNTING CLIP

250mm

5шт.

16

KLJ14470

HYDRAULIC HOSE

12mm ID x 1790mm

1шт.
