(88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX160D LC (88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

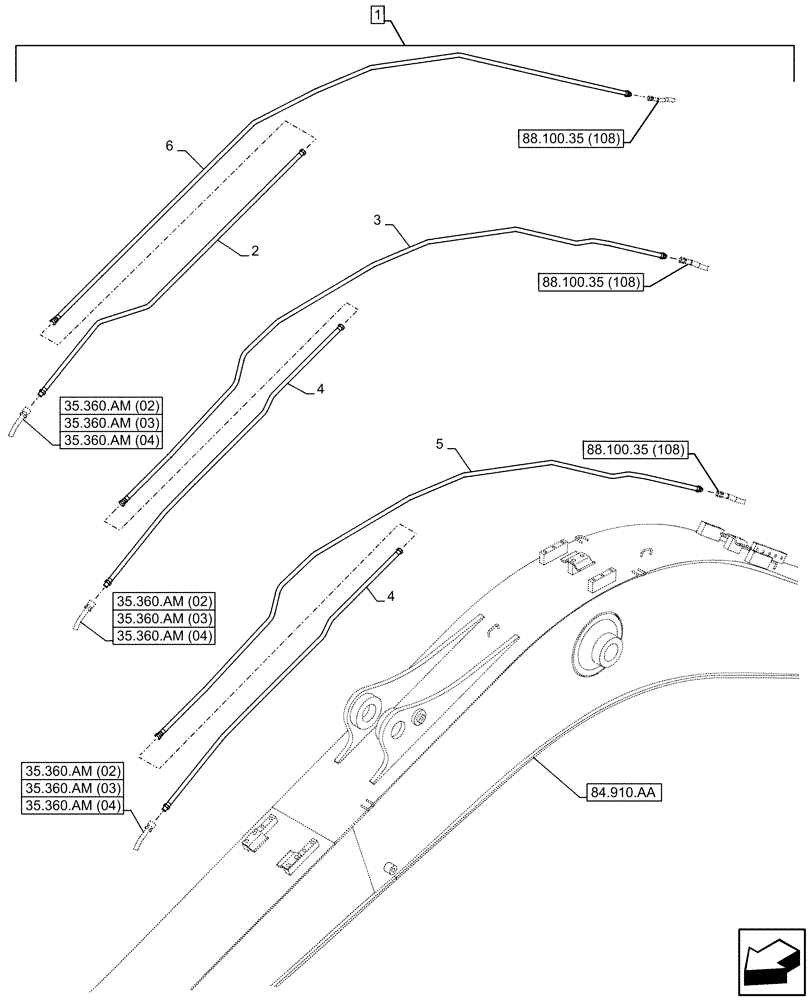

Схема запчастей Case CX160D LC - (88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
88.100.35 (108)
35.360.am (02)
3
88.100.35 (108)
4
35.360.am (03)
1
35.360.am (04)
5
6
35.360.am (04)
84.910.aa
35.360.am (03)
35.360.am (03)
88.100.35 (108)
35.360.am (02)
35.360.am (02)
35.360.am (04)
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP428-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KLV12460

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.

3

KLV14180

HYD TUBE,Dia 21.7

1шт.

4

KLV12450

HYD TUBE,21.7mm X 16.1mm Adaptor

2шт.

5

KLV14190

HYD TUBE,Dia 21.7

1шт.

6

KLV12430

HYD TUBE,21.7mm X 16.1mm Adaptor

1шт.
