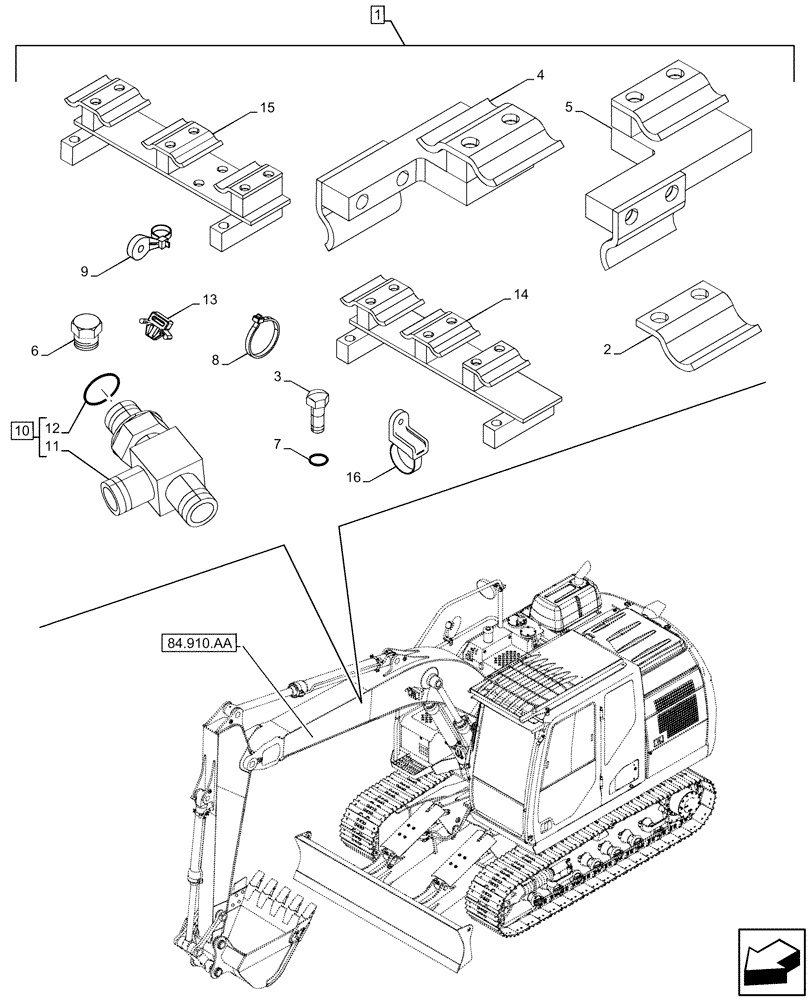

Запчасти Case CX160D LC (88.100.35[103]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, CLAMP, PLUG, TEE (88) - ACCESSORIES

1

KG0LP428-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHV10500

COLLAR CLAMP

5шт.

2

KHV10480

COLLAR CLAMP

5шт.

3

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

14шт.

3

166352A1

BOLT

20шт.

4

KNV13810

BAR

2шт.

5

KNV13820

BAR

2шт.

6

158841A1

PLUG

3шт.

7

154487A1

O-RING

3шт.

7

154523A1

O-RING

2шт.

8

150498A1

MOUNTING CLIP

297mm

4шт.

8

150071A1

MOUNTING CLIP

374mm

3шт.

9

KHR2584

CLAMP

8.2mm D

1шт.

10

159497A1

TEE

ASSY, Incl 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

KHR10220

MOUNTING CLIP

1шт.

14

KLV12310

RETAINER COLLAR

1шт.

15

KLV12340

BAR

2шт.

16

KHR2581

CLAMP

1шт.
